Waist High Speed Gate Systems Retractable Flap Barrier Turnstile For Bus Station

Waist High Speed Gate Systems Retractable Flap Barrier Turnstile For Bus Station

Functions and Features:

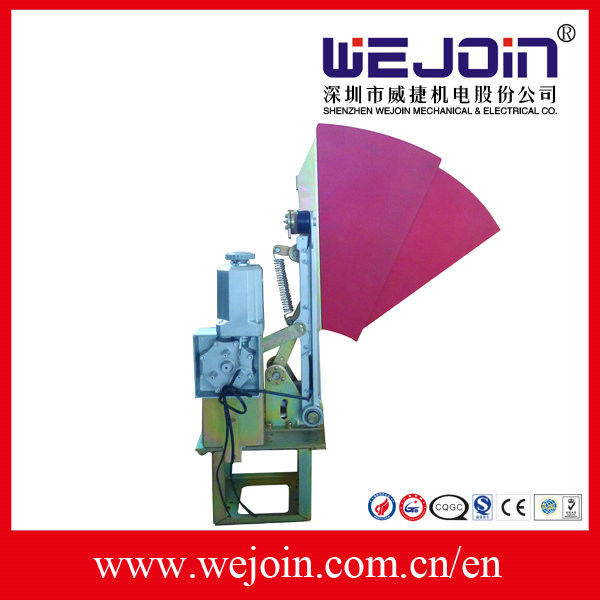

• The design is of integration of machinery and electronic structure, with special drive style and reliable machinery auto locking solution, precise worm gear, and cabinet composite structure.

• Malfunction self-detection. Which is easy for operation and maintenance.

• Flap work synchronously.

• Flap auto reversing when meeting exterior force.

• Audible and visual alarm in case of unauthorized access.

• Auti-reverse passing

• Operational mode can be set up through the built-in menu on the control board.

• Auto reset function, after the flap open if no pedestrian passes in a fixed time, the system will cancel the order and the auto-reset time is adjustable.

• Flaps open when power off, and auto-close when power on.

• Compatible with diverse access control devices.

• Pedestrian flow directions can be single or double directions.

• Available for two-way traffic lights, which can prompt the state---pass or no-entry.

• RS232 and LAN sockets are available to connect the computer.

Main Technical Specifications:

1)Material: SS304,thickness is no less than 1.5mm

2)Motor Material: steel and aluminum alloy

3)Gate Opening and Closing time:1S

4)Passing Speed: 30~40persons/min

5)Power: AC220C±10V,AC110C±10V

6)Motor: DC Brushless Motor, 24V

7) Input Connection: +12V Level Signal or Pulse Wide>100ms DC12V pulse, Current>10Ma

8) Infrared Sensors: 8 Pairs

9) Relative Humidity: <95%, No Densation

10) Operating Temperature: -25°C-50°C

11) Working environment: indoor and outdoor(added the rain-shed)

12) Protection Grade: IP32

Applications:

High class communities, intelligent buildings, hotels, subway stations and other high level venues.
