Shenzhen Turnstile Technology Co., Ltd.
High quality, Best service,Reasonable price.
 |
| Place of Origin: | China |
| Brand Name: | RS Security |
| Certification: | CE SGS FCC RoHS |
| Model Number: | RS 1002 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | Wooden Box |
| Payment Terms: | T/T, Western Union |
| Series: | Road Blocker | Carrying Capacity: | ≤120tons |
|---|---|---|---|
| Voltage: | 380V Or 220v(Optional) | Power Consumption: | Max 1.5KW |
| Rising Part Height: | 400mm | Standard Rising And Lowering Times: | Between 1 And 10seconds |
| High Light: | electric driveway gates,parking barrier gate |
||

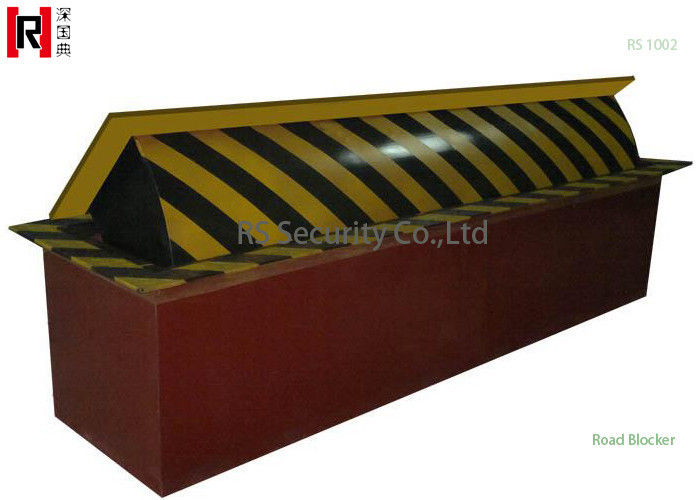

Heavy Duty Remote Control Road Blocker WITH Anti-terrorist
Specifications
Highquality heavy duty security road blocker With the Spike
1.Hydraulic Motor
2.Three-phase/Single power
3.Hydraulic motor
1. Technical Data
|
1 |
Passing Vehicle |
70T Truck |
|
2 |
Operating Temperature |
-45°C-65°C |
|
3 |
Relative Humidity |
≤ 95%, No Condensation |
|
4 |
Starting Time |
≤ 3S |
|
5 |
Shutting Time |
≤ 4S |
|
6 |
Power |
1.5KW/380V, Three-phase electric and Single |
|
7 |
Motor |
Hydraulic Motor |
|
8 |
Memory Environment |
-40°C-75°C, Rainproof, Moisture, Dustproof |
|
9 |
Movable Cover Rising Height |
350mm---1000mm |
|
10 |
Material |
A3 Steel with the rustproof lacquer |
|
11 |
Protection gate |
IP54 |
|
12 |
Dimension |
L2260*W820*H700mm, L2500*W820*H700mm, L3500*W820*H700mm,,L3210*W1156*H808mm custom made as demand |
|
13 |
Operation Place |
Subway Station, Hoverport,Tourism Sports,Exhibition, Swimming Hall,Residence Area, Enterprise’s Entrance and Exit Attendance ,Gateway Guard,Charge Management, Special Access Control |
2.Functions& Features
1.The structure is firm and durable ,bearing heave burden
2. Running stablely without noise
3. Applied in hard working environment
4.Adopt low hydraulic pressure driving mode, without trouble and high reliablity
5. Long life time
6. Low maintenance rate and easy to maintenance
7. Combine with other control equipment to realize control automatically.
8.Manual operation mode, you can lift the machine by manual when power-off or trouble occurred ,the moved swing gate will fall on level place.
9.The main hydraulic pressure part and electrical spare part are all adopt import brand product,and assure working reliable and using long time.
