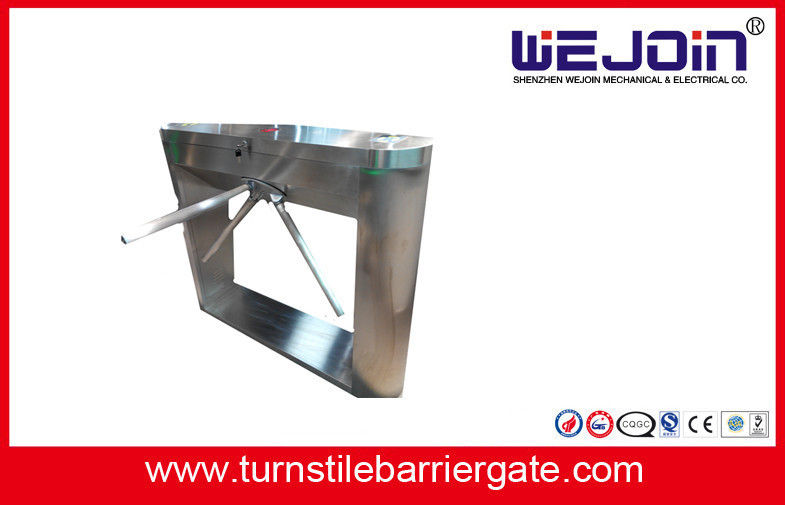

Auto Security Tripod Turnstile Barrier Gate / pedestrian Intelligent barrier

Auto Security Tripod Turnstile Barrier Gate / pedestrian Intelligent barrier

Auto Security Tripod Turnstile Barrier Gate / pedestrian Intelligent barrier

Product Details:

Place of Origin: Shenzhen, China
Brand Name: WEJOIN
Certification: SO 9001:2008, CE,
Model Number: WJTS112S

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Export Wooden Case
Delivery Time: 3-15 days depending on the quantity
Payment Terms: T/T, Western Union
Supply Ability: 1, 000 set/month
Trade Terms:: Ex works, CIF
Contact Now
Detailed Product Description
Rated Power: 36W Driving Motor: Brushless DC Motor
Transit Speed: 30~40 Persons/min Power Supply: 220V±10%, 110V±10%
Working Temperature: -40°C~55°C Working Environment: Indoor / Outdoor (Shelter)



Auto Security Tripod Turnstile Barrier Gate / pedestrian Intelligent barrier





Function and Features:





▲. A compact electro-mechanical design with an exquisite rotating plate and a self-lock mechanism

▲. Passable for bi-direction

▲. Self-locking within 5 seconds if there is no one passing after signal activation

▲. Arm auto dropping when power off and manually put the arm up when power on

▲. Person counter output is available to indicating passenger quantity; the pulse is 200MS

▲. Able to avoid unauthorized access

▲. Fire alarm emergency signal output: if with arm auto drop function, the arm will drop automatically after signal activation; if not, the arm rotating plate can operate freely and there is alarm after signal activation. ▲.Input interfaces available for left access(L), right access(R), emergency(EM), GND; EM is in priority; NO electrical replay output with pulse between 200MS~500MS; EM signal should maintain connected when any emergency happens.

▲. Output interfaces available for passenger counters (left and right side); it is dynatron OC output with the pulse of 200MS; working with devices of DC 5V, 12V, 24V.

▲. Emergency Alarm interfaces available for alarm equipments under 12W or DC12V





Specifications:





Model
Item
WJTS112S
Manual, Semi or Full-automatic Semi-automatic
Material of Housing 304 Stainless Steel
Thickness of Housing 1.50mm
Dimension of Housing
(L×W×H mm)
1235×280×1000
Length of Pole (out of housing) 490mm
Net Weight 70kg
Max Load-bearing of Pole 80kg
Driving Force of Pole 3KG
Rotating Direction Double Direction
Power Supply 220V±10%, 110V±10%
Frequency 50/60HZ
Working Voltage of Motor DC12V
Rated Power 36W
Driving Motor Brushless DC Motor
Input Interface dry contact with the pulse between 200ms~500ms
Transit Speed 30~40 persons/min
Working Temperature -40°C~55°C
Working Environment Indoor / Outdoor (Shelter)
Relative Humidity ≤95%



Applications:





The tripod turnstiles can be used in places such as restaurants, hotels, office buildings, museums, gyms, clubs, metros, bus stations, high class communities, intelligent buildings, hotels, subway stations and other high level venues, ect.





After-sale Service:





1 year warranty

Lifetime Service with charge accordingly





Package Preview:





Auto Security Tripod Turnstile Barrier Gate / pedestrian Intelligent barrier





Detail Preview:







Auto Security Tripod Turnstile Barrier Gate / pedestrian Intelligent barrier
