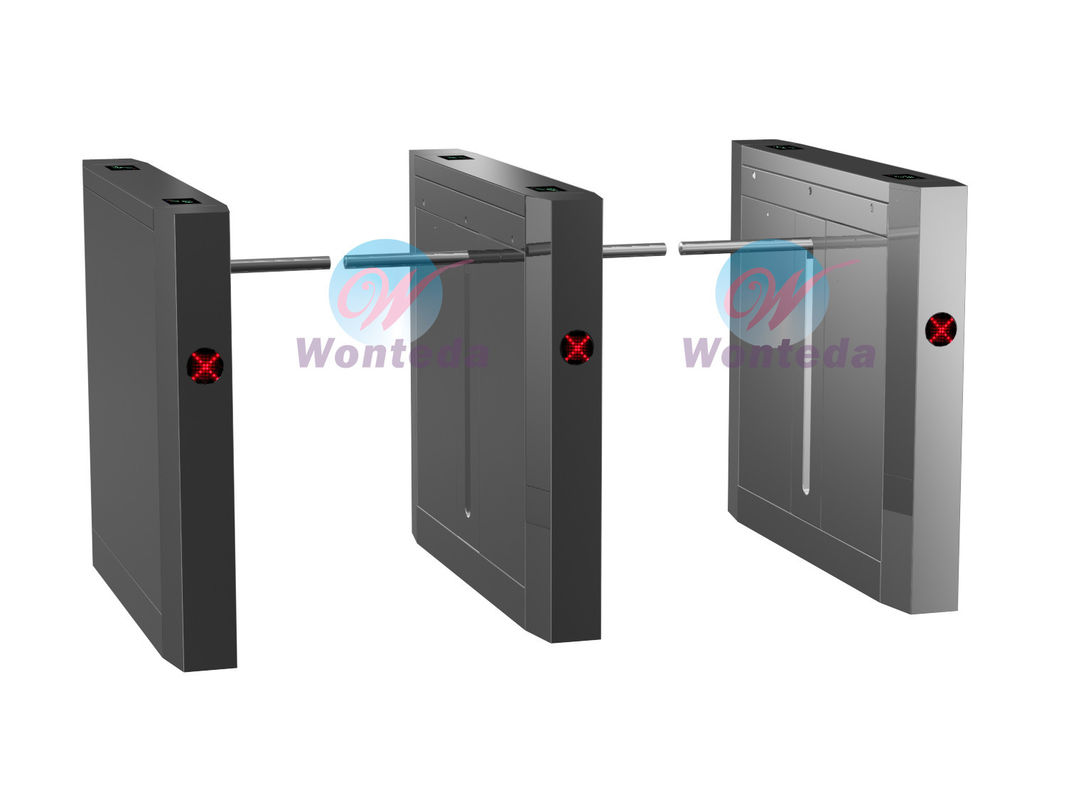

Drop Arm barrier Gate Security Access Control C802

Product Details:

Place of Origin:	Drop Arm Gate Made In China
Brand Name:	WTD Drop arm gate
Certification:	CE
Model Number:	WTD-C802

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	WOODEN BOX
Delivery Time:	10-15 day
Payment Terms:	T/T ,Western Union,Paypal etc..
Supply Ability:	1000 Set/Month

Contact Now

Detailed Product Description

Product Name:

Drop Arm Gate Security Access Control Systema With Infrared Protection

Specifications

High quality automatic drop arm gate
1.304#Stainless steel material.
2.Bi-Direction Access Control
3.Self-recovery function.
4.Indoor or outdoor (added the rainshed) .
5.Anti-collision function.

Product Description:

The barrier arm turnstile is a perfect combination of aesthetic look and fast passage.Normal close or normal open can be switched.

It provides standard or wide lane to meet different requirements for the lane width, the lane width can be 600-1200mm

Brand name	Drop arm barrier gate/drop arm turnstiles
Housing material	304#stainless steel,perforated with laser
Finishing	Brushed surface (Standard) / Polishing surface
Dimension	1200x1160x990mm
Arm length	280mm(standard)/250-600mm(option)
Net weight	65kg(single gate) 115kg(double gate)
Power voltage	AC220±10% V, 50HZ
Driving motor	24V DC brush
Transit speed	30-40 people/minute
LED Indicator Light	3
couples of infrared sensors	5
Access port	4
Close and Open time:	0.6s
Restoring time after fault occurs	10s
Working environment	indoor/ outdoor( with shelter);
temperature	-10°C---70°C
Relative Humidity	:≤90%, no condensation
Communication interface	RS485
Input interface	Dry contact signal/12V signal/DC12V pulse signal

Technical Parameters :

Bidirectional control, by authorized card or biometric identifications, push button and so on
Can be integrated with all kinds of access control systems,
Flow direction guide with high bright led lamp
Anti-punch, the barrier will not close if it detects people inside the passageway
Anti-tailgating, it allows only one person to pass for an authorized card presented.
Anti-panic, when power off, the barrier will open for people to go through.
Normal close or normal open (for group pass)
Close and open by remote control
Card reading memory function, the user can set multiple time card reading passing or single time card reading passing
Failure detection and alarm functions;
