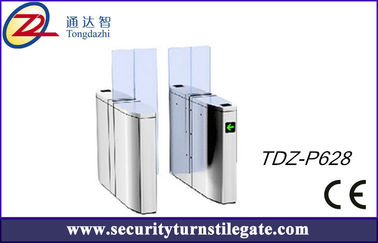

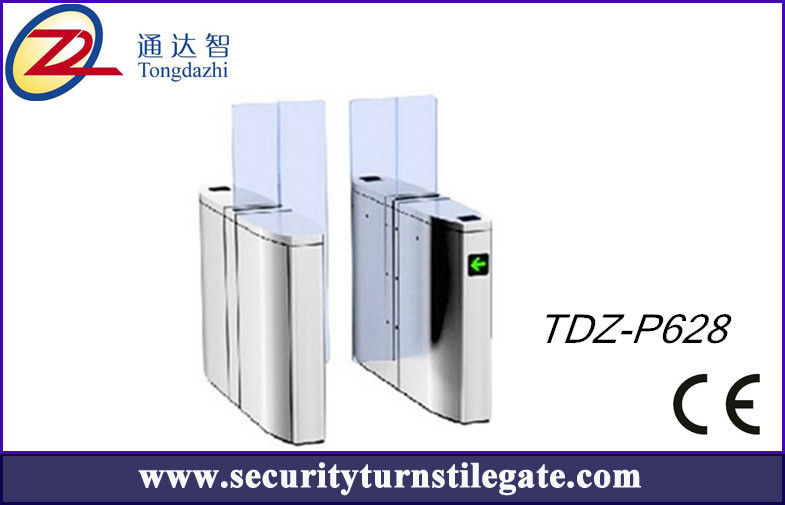

Custom optical mechanical full height Turnstile sliding barrier gate operator

Custom optical mechanical full height Turnstile sliding barrier gate operator

  • Custom optical mechanical full height Turnstile sliding barrier gate operator
  • Custom optical mechanical full height Turnstile sliding barrier gate operator
Custom optical mechanical full height Turnstile sliding barrier gate operator
Product Details:
Place of Origin: China
Brand Name: Tongdazhi
Certification: CE
Model Number: TDZ -P628
Payment & Shipping Terms:
Minimum Order Quantity: 1 pair
Price: USD 1500-3000 per piece
Packaging Details: paper carton and wooden case
Delivery Time: 3-5 working days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 500 pieces per month
Contact Now
Detailed Product Description
Size: 1400*320*1000mm Power: 50 W
Weight: 90kgs Material: 304 Stinless Steel
High Light:

Turnstile Barrier Gate

,

Pedestrian Turnstile Gate



Custom optical mechanical full height Turnstile sliding barrier gate operator





Product Description:



Intelligent Sliding barrier  through years of careful development, research and production of intelligent channel management equipment, mainly for personnel access to the intelligent management of high-tech products.The equipment organically integrated mechanical, electronic, microprocessor control, and a variety of identity recognition technology. Optional various identification system devices and reliable security protection devices, alarm device, direction, and extended a friendly LED count display interface, to coordinate channel intelligent control and management.Intelligent swing gate easily compatible IC cards, ID cards, bar code cards, fingerprint reader.To realize access personnel civilized and orderly passage way, the effective management of personnel access. Can be widely used in stations, docks, subways, factories, buildings, intelligent community, hotels, clubs, corporate.



Custom optical mechanical full height Turnstile sliding barrier gate operator 0

Feature of the product:

1. Fault detection,user-friendly maintenance and use

2. Small button int the main control panel ,can be set state of equipment.

3. Pinch, anti bumps function, Blockage when in the process of the swing arm reset within a predetermined time, click stop working automatically, the default reset again after a delay, and the intensity is very small(2kg)

4. Scour protection function ,when the gate signal is not received, the stick is automatically locked

5. The door synchronization are adjustable(for double off gates situation)

6. With automatic reset function, gate, not prevailing within the stipulated time, the system will automatically cancel the access permissions of the user.

7. Normally open or closed can be freely adjusted to meet different venue requirements

8. Mount can be used with a variety of reading devices, work when it receive relay switch signal

9. Single ,bi-directional swing function, one-way or two-way control personnel access

10. Directly through the remote management computer control and management

11. automatically reset automatic reset delay, the system default is 5 seconds after opening (adjustable)

12. Power failure emergency function after power channel automatically open, closed automatically after power-on, to meet the special needs of the user and the fire safety requirements

13. Sound (light) alarm function, containing illegal intrusion alarm (reverse broke into the Gate); etc.

14. Counting function (optional)

15. Anti-pinch function (four pairs of infrared)

16. The precise logical judgment, infrared reset function (4 or 6 pairs of infrared)

17. The voice output,humane tips for correct password (optional)).



Technical:

1. Chassis material: domestic standard 304 stainless steel dimensions: 1400 L * 320 W * 1000 high (MM)

2. Swing direction:Single ,bi-directional

3. Power supply voltage: AC220 ± 10%V, 50HZ

4. Drive motor:Brushless DC motor 24V

5. Input interface:+DC 12V level signal or DC 12V pulse signal(pulse width>100ms)

   dirve current> 10 mA

6. Communication interface:RS485 electrical standard ,Distance ≤ 1200 meters

7. Prevailing speed:40 passengers/min(normally open)25-30 passengers/min(normally closed)

8. Gate opening/clearance time:1-2 seconds

9. Time required to enter the access state on power:3 seconds

10. Automatically reset the time after failure:10 seconds

11. Working environment: indoor and outdoor

12. Ambient temperature: -10 Celsius to 50 Celsius,Relative humidity: ≤90% no condensation





Structure

frame structure/standard stainless steel shell

Production

full CNC laser cutting machine production

Maximum channel width

550-600mm

Gate opening time

0.2 seconds

Power

50W

Drive motor

brushless DC motor (24V)

Working life

3,000,000 times

LED indicato

2

Reader windows

2

Power on  state required time

3 seconds

Failure automatically reset time

10 seconds

Single movement N.W.

90KG

Double movement

130KG
