Automatic full height Single Turnstile access control Pedestrian Barrier Gate

Automatic full height Single Turnstile access control  Pedestrian Barrier Gate

Product Description:

Appearance GB (304) stainless steel plate stamping molding, nice shape, rust-proof and durable.And foreign standard electrical interface, bar code card, ID card, IC card reader can be easily integrated in the equipment.Access personnel civilized in order and put an end to illegal access. the satisfy requirement of fire protection system is also designed the function, in case of emergency, guarantee channels unimpeded, convenient personnel evacuation in time.

Full Height TurnstileIt
1.automatically lock if the pedestrian hasn't passed through Compatible with intellegent access

Full Height Turnstile

1 Main technical parameters

1) Power: AC220±10% V,50HZ

2) Driving electromotor: DC electromotor 24V

3) Working environment temperature: -10^OC - 50 ^OC

4) Relative humidity: ≤90%

5) Input interface: 12V level signal or DC12V pulse signal with width of more than 100mA, driving current>10mA

6) Communication interface: RS485 electric interface

7) Communication distance≤1200m

8) Transit speed: 30persons/min(open-often model)

20persons//min(close-often model)

9) Time of gate opening or closing: 1sec

2 Parameter specification

(1) Enter menu:

Press set key, after hearing a sound “du”, loosen from SET key. At this time, the word “poo” is displayed, which means that it’s in status of menu setup. And at this time INC key and DEC key can be chosen to setup function number: Press INC key for function number plus one, and press DEC key for function number minus one; there are 10 kinds of functions as below:

P00: Exit from menu setting, when POO appears, press SET Key to back; Press INC Key and DEC Key to choose setting parameters;

P01: Working mode of the equipment setup, there is 3 working

P02: The locking status setup:

=0 means not return to zero position

=1 means return to zero position

P03: Transit time setup

P04: Default value reset

(2) Go back from menu setup:

Press INC Key or DEC Key, when it display the word P00, press SET Key to back from menu setup.

1.Structure: Frame structure / stainless steel housing

2.Production process: full computer CNC laser cutting machine production

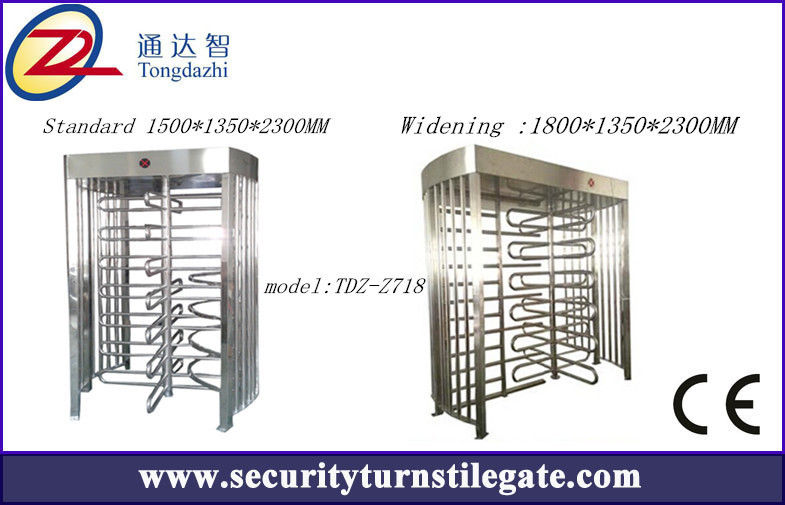

3.External dimensions: 1500*1350*2300MM/ 1800*1350*2300MM

4.Stainless steel thickness: 1.5 mm

5.Weight: around 350kg

6.Brake rod length:600mm

7.Brake rod drive mode: digital mode

8. Bi-direction, or one direction permitted, one forbidden, or one direction charged, one for free

9.Re-position function. After card reading, if passenger not through within the specific time, time and the

 limit passing time length can be set.

10.Access Prompt function:Red and green light prompt the passing information.

11. Using optical hole works, no delay on the input control signal

12.Working environment: indoor and outdoor with shed

13.Ambient temperature:  -10 Celsius  to 50 Celsius,Relative humidity: ≤90% no condensation

14.Induction card read bayonet size: equipped with standard mounting bracket, or to tailor

15.Gate opening time:0.2 second
