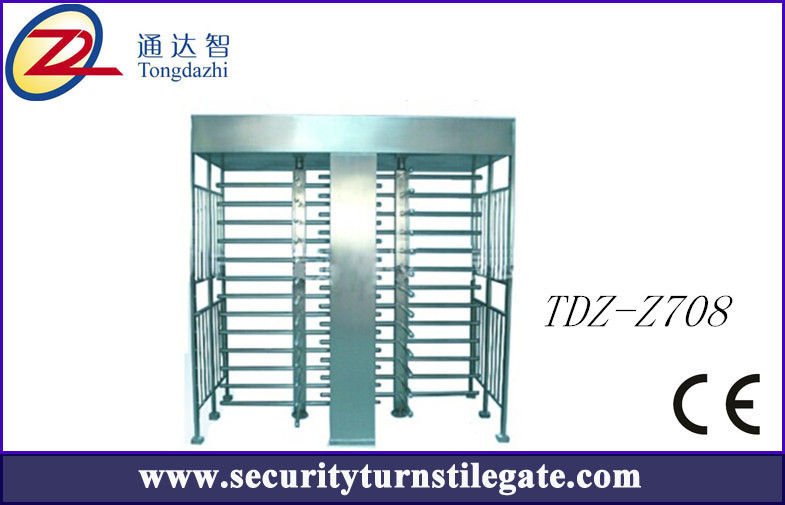

Access Control single Full Height Turnstile Security Products Customized

Access Control single Full Height Turnstile Security Products Customized

    • Access Control single Full Height Turnstile Security Products Customized
    • Access Control single Full Height Turnstile Security Products Customized
  • Access Control single Full Height Turnstile Security Products Customized

    Product Details:

    Place of Origin: China
    Brand Name: Tongdazhi
    Certification: ce
    Model Number: TDZ-Z708

    Payment & Shipping Terms:

    Minimum Order Quantity: 1piece
    Price: USD 2500-6000per piece
    Packaging Details: paper carton and wooden box
    Delivery Time: 5- 7 working days
    Payment Terms: T/T
    Supply Ability: 200 pieces per month
    Contact Now
    Detailed Product Description
    Material: 304 Satinless Steel Protection Grade: 54
    Working Mode: One Directional Or Bi-directional Optional Power: 50w



    Access Control single Full Height Turnstile Security Products Customized



    This is designed to provide unsupervised access control for office or building. The impenetrable construction

    eliminates any unauthorized access to restricted areas. To gain authorized passage through the the user must

    present a valid card for the access control system. Upon presentation of the valid card. It  will unlock and allow the user to pass through the direction requested. The turnstile can also work with push

     button, finger print and face recognition access control system.



    Access Control single Full Height Turnstile Security Products Customized

    Feature:



    1, stainless steel machine case;



    2, standard interface which easy installs external reading card equipment etc;



    3, access way can be adjustable;



    4, infrared detection,illegal broke in,followed alarm,anti-clipping function etc optional;



    5, an emergency control the boom to rebound;



    6, external dimension:2400*1350*2300MM



    7, reading and writing way:IC card,ID card,mag card,bar code reader.





    Dimension

    2400*1350*2300MM

    Stainless Steel Specification

    Body: SS304

    Brake rod length

     600mm

    Power Supply

    AC110V±10V,60Hz / AC220V±10V,50 Hz

    Drive motor

    Brushless DC motor 24V

    Communication interface

    RS485 electrical standard or TCP/IP

    Passing Speed

    30 persons/min

    Communication distance

    1200 meters

    Input Interface

    +12V electrical signal or DC impulse signal with width >100ms

    Communication Interface

    RS485/relay signal

    Operating Temperature

    -15°C ~ 50°C

    Related Humility

    <=95%

    Package

    Paper Carton/Wooden Box
