Shenzhen Turnstile Technology Co., Ltd.
High quality, Best service,Reasonable price.
 |
| Place of Origin: | china |
| Brand Name: | TDZ |
| Certification: | CE |
| Model Number: | TDZ - Z706 |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 2000 - 3200 / Piece |
| Packaging Details: | paper carton/wooden case |
| Delivery Time: | 5-7 working days after ordered |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 2000 pieces / month |
| Opening Pattern: | Automatic | Size: | 2400*1500*2300 Mm |
|---|---|---|---|
| Thick Of Steel: | 1.5mm | Material: | 304stainless Steel |
| Passing Speed: | < 40 Person/min | Weight: | 600 Kg |
| Power Supply Voltage: | AC220 ± 10%V, 50HZ | Brake Lever Length: | 600 Mm |
| Communication Interface: | RS485 Electrical Standard Or TCP/IP | Working Environment: | Indoor And Outdoor With Shed |
| High Light: | Turnstile Full Height,Football Turnstiles |
||

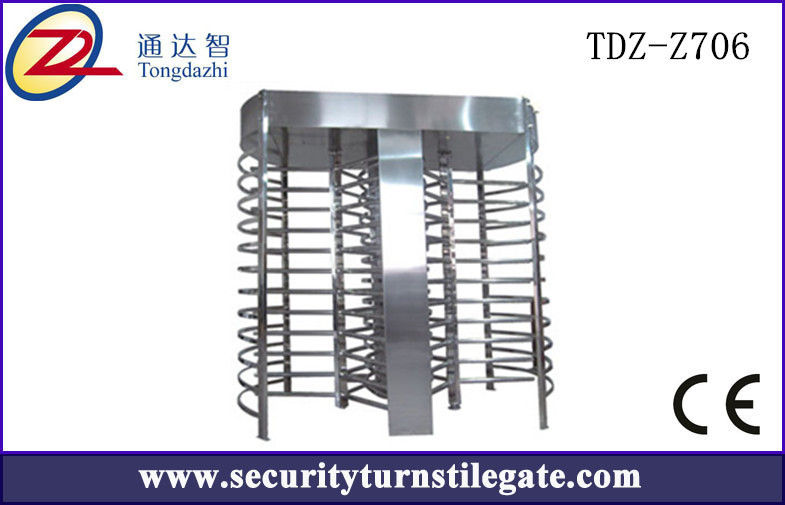

120 degree single / double Turnstile Automatic Pedestrian Barrier Gate
Quick Details
dirve current> 10 mA
Description:
A turnstile is a gate-like structure consisting of many horizontal posts which can rotate to either allow access to users, or to stop users from entering a restricted area. They are used most commonly in train stations, airports, theme parks, museums and office lobbies.
Technical Parameters
| Framework | 304(standard)stainless steel |
| Size | 2400*1500*2300 mm |
| Weight | 600kg. |
| Operating Mode | one-way or two way control |
| Power supply voltage | AC220 ± 10%V, 50HZ |
| Interface | standard RS485/distance≤1200m or TCP/IP. |
| Gate opening time | 0.2 second |
| Transit speed | 30-40 persons per minute |
| Working environment | indoor or outdoor |
| Temperature | -10 Celsius to 50 Celsius |
| Relative humidity | :≤90% no condensation |
Contact Person: Mr. Shen
Tel: 86-135367899
Fax: 86-755-423479
