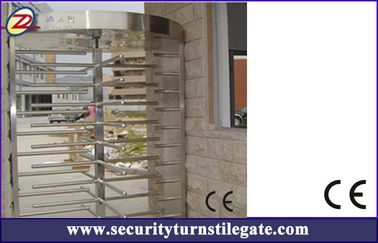

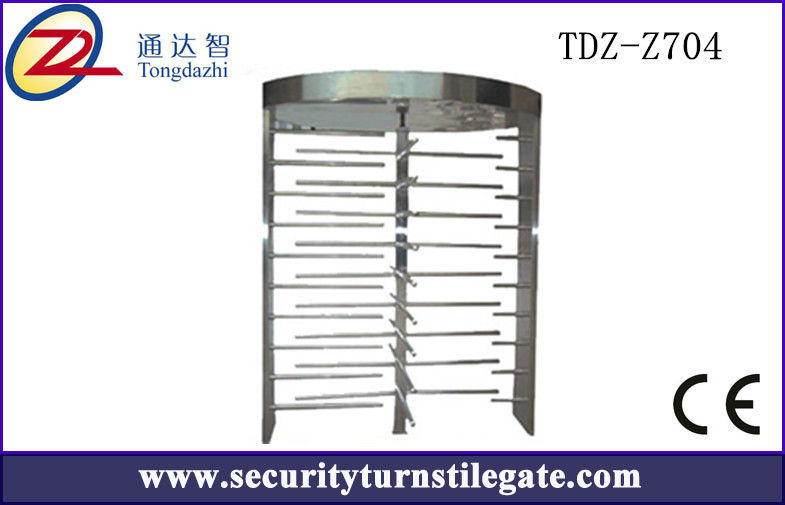

High security card reader model rfid Turnstile Full Height DC motor 24V

High security card reader model rfid Turnstile Full Height DC motor 24V

    • High security card reader model rfid Turnstile Full Height DC motor 24V
    • High security card reader model rfid Turnstile Full Height DC motor 24V
  • High security card reader model rfid Turnstile Full Height DC motor 24V

    Product Details:

    Place of Origin: china
    Brand Name: TDZ
    Certification: CE
    Model Number: TDZ - Z704

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: USD 1000 - 3000 / Piece
    Packaging Details: paper carton/wooden case
    Delivery Time: 5-7 working days after ordered
    Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability: 2000 pieces / month
    Contact Now
    Detailed Product Description
    Opening Pattern: Automatic Size: 1500*1500*2300 Mm
    Thick Of Steel: 1.5mm Material: 304stainless Steel
    Passing Speed: < 40 Person/min Weight: 350 Kg
    Power Supply Voltage: AC220 ± 10%V, 50HZ Brake Lever Length: 600 Mm
    Communication Interface: RS485 Electrical Standard Or TCP/IP Working Environment: Indoor And Outdoor With Shed



    High security card reader model rfid Turnstile Full Height DC motor 24V





    Quick Details



    1. Size:1500*1500*2300 mm
    2. Passing Speed:30 persons/min (normal open)
    3. Material:304stainless steel
    4. Brake rod length:600mm
    5. Input interface:+DC 12V level signal or DC 12V pulse signal(pulse width>100ms)

         dirve current> 10 mA



    Description:

    A turnstile is a gate-like structure consisting of many horizontal posts which can rotate to either allow access to users, or to stop users from entering a restricted area. They are used most commonly in train stations, airports, theme parks, museums and office lobbies.





    Technical Parameters



    Framework 304(standard)stainless steel
      Size  1500*1500*2300 mm
    Weight 350kg.
    Operating Mode one-way or two way control
    Power supply voltage AC220 ± 10%V, 50HZ
    Interface standard RS485/distance≤1200m or TCP/IP.
    Gate opening time 0.2 second
    Transit speed 30-40 persons per minute
    Working environment indoor or outdoor
    Temperature -10 Celsius  to 50 Celsius
     Relative humidity :≤90% no condensation
