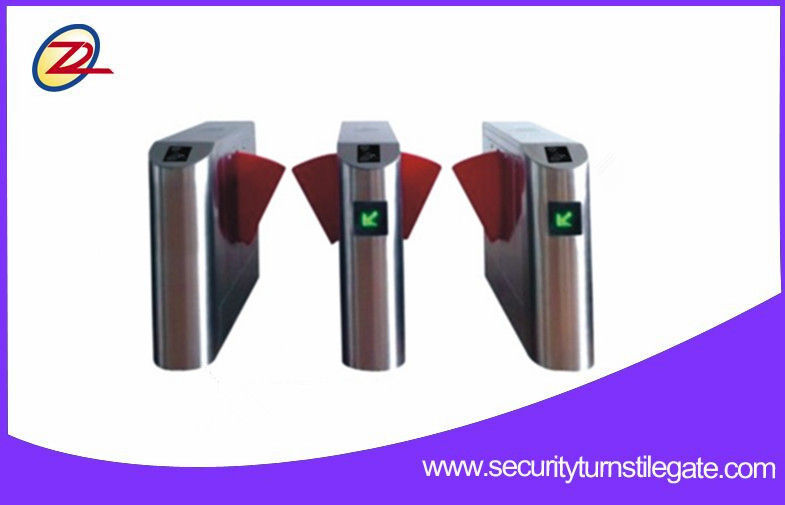

Stainless Steel flap barrier gate waterproof With High Speed

Product Description:



Type bevel shape flap barrier gate have closed blocking and other functions





Rfid flap barrier gate with counter function door access control system



Overall plate structure, the box materials using standard 304 stainless steel, double waterproof treatment.Can be installed in indoor, outdoor with shed, applicable to restrict the passing rate of

the place, has the count, attendance, current limiting function.



Feature:



1. Stainless steel box, box-type bevel shape, novel and beautiful, durable.



2. Waterproof, sunscreen, anti-temperature, anti-cold.



3. Access Prompt function:Red and green light prompt the passing information.



4. The programmable gates control state, with a variety of operating modes you can

choose, you can set a one-way or two-way control



5. Compatible IC, ID, magnetic card, bar code card, and other control equipment.



6. Power failure emergency function after power channel automatically open, closed

automaticallyafter poweron, to meet the special needs of the user and the fire safety

requirements



7. The control panel with counting function, LED digital display function (optional)



8. The standard input and output interface, is the best choice for system integrators



9. With automatic reset function, gate, not prevailing within the stipulated time, the

system will automatically cancel the access permissions of the user.(the standard is

 gate turns on 5 secondswill be automatically reset)



10. Pinch, anti bumps function, Blockage when in the process of the swing arm reset

within a predetermined time, click stop working automatically, the default reset again

after a delay, and the intensity is very small(2kg)



11. Sound, light alarm function: with trespassing, trailing alarm



12. Scour protection function ,when the gate signal is not received, the stick is

automatically lockd



13. Fault detection and alarm function, user-friendly maintenance and use





Technical:



1.Structure: frame structure/standard stainless steel shell



2.Production: full CNC laser cutting machine production



3.Dimensions: length 1200 × width 300 × height 1000 (mm)



4.Stainless steel thickness:1.5mm



5.Maximum channel width :550-600mm



6.Weight: 140Kg



7.gate opening time: 0.2 seconds



8.prevailing speed: 30 people / min



9.Communication Interface: Standard RS485 interface, distance ≤ 1200 meters or

TCP / IP



10.Power: 50W



11.Power supply voltage: AC220 ± 10% V, 50HZ



12.drive motor: brushless DC motor (24V)



13.normal life: 3,000,000



14.LED indicator: 2



15.reader windows: 2



16.access speed :30-40 / min



17.power on the prevailing state required time: 3 seconds



18.failure automatically reset after time: 10 seconds



19.input interface: dry contact signal or +12 V level signal or pulse width ≥ 100ms

DC12V pulse signal, driving current ≥ 10mA;



20. Working environment: indoor, outdoor (with shed)



21.Temperature: -10 °C ~ 50 °C Relative humidity: ≤ 90%, no condensation
