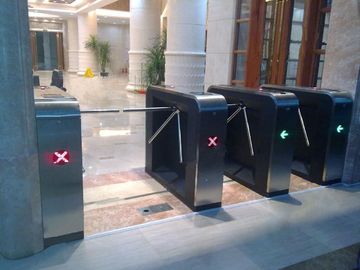

morden turnstile barrier for museum biometrics security access control

morden turnstile barrier for museum biometrics security access control

    • morden turnstile barrier for museum biometrics security access control
    • morden turnstile barrier for museum biometrics security access control
  • morden turnstile barrier for museum biometrics security access control

    Product Details:

    Place of Origin: China
    Brand Name: AMSEN
    Certification: CE
    Model Number: AM-TS50

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: Standard export package
    Delivery Time: 5 days
    Payment Terms: TT
    Supply Ability: 300/month
    Contact Now
    Detailed Product Description

    Main Technical Parameters

    ◇ Material: 304 stainless steel, thickness 1.5-2mm optional cabinet

    ◇ Dimensions: length 420 × width 330 × height 980 (mm) / Length Width 280 × height 1200 × 1000 (mm)

    ◇ brake lever length : 500 (mm)

    ◇ brake lever maximum tolerance: 80Kg

    ◇ brake lever work driving force : 3Kg

    ◇ brake lever Transmission: digitally

    ◇ brake lever steering : one-way , two-way ( optional )

    ◇ Emergency measures: automatic / manual off the pole ( optional )

    ◇ Lighting Tips: access status indication

    ◇ Working environment: indoor, outdoor

    ◇ Temperature : -30 ℃ ~ 70 ℃

    ◇ gate opening time: 0.2 seconds

    ◇ pass speed: 30 people / minute

    ◇ Power supply voltage : AC220V ± 10%, 50Hz;

    ◇ Motor Movement : 24V / 30W homemade electromagnet German technology

    ◇ card reader port Size: equipped with standard mounting bracket, or tailor

    ◇ Communication interface: RS485 interface standard electrical

    ◇ Communication distance : ≤ 1200 m ( mass of wire and converter , the number of

    485 devices , equipment, lightning protection and baud rate will seriously affect the level of communication distance ) in the ideal environment premise

    ◇ Input Interface : +12 V level signal or pulse width > 100ms pulse signal , the drive current > 10mA

    Main Features

    1. Using 304 standard stainless steel, professional industry design at IP54 with moisture proof, dust proof and water proof, suitable for indoor and outdoor;

    2. Housing in standardized design, based on the full CNC laser cutting, drilling, molding technology, mechanization drawing process, the modular docking, it is easy to handle maintenance with high degree of interchange

    3. Self-centering mechanism to ensure complete rotation into the home position

    4. Anti-backup device to prevent reverse rotation once the mechanism has moved 60° from home

    5. Positive locking action for one passage at a time

    6. Optional brake lever cover to prevent body harm of child and pedestrian due to collision

    7. Drop arm : the horizontal arm can drops automatically to create a clear passage for evacuation when receive fire alarm or power failure

    8. Easy to integrated with various reading devices
