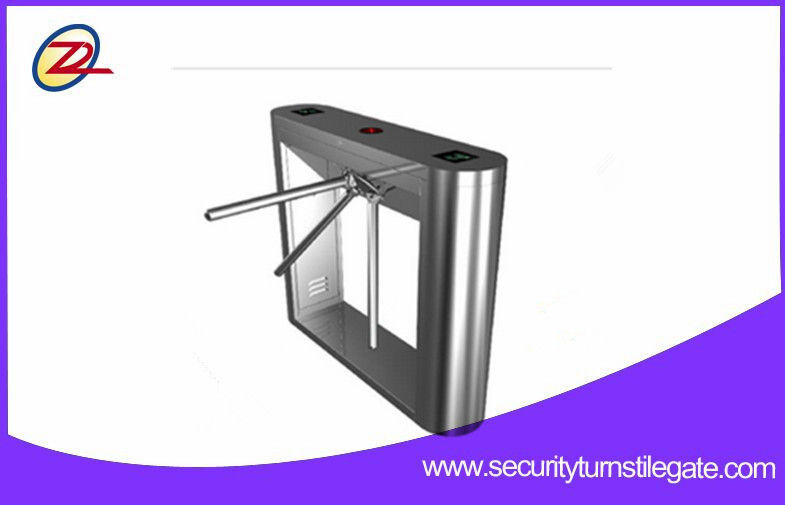

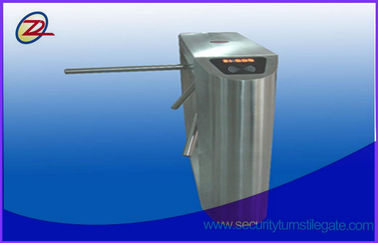

TCP / IP Tripod Full Height Turnstile Mechanical Rfid Control System

TCP / IP Tripod Full Height Turnstile Mechanical Rfid Control System

    • TCP / IP Tripod Full Height Turnstile Mechanical Rfid Control System
    • TCP / IP Tripod Full Height Turnstile Mechanical Rfid Control System
  • TCP / IP Tripod Full Height Turnstile Mechanical Rfid Control System

    Product Details:

    Place of Origin: china
    Brand Name: TDZ
    Certification: CE
    Model Number: TDZ-S328

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: USD 600 - 1200 / Piece
    Packaging Details: paper carton/wooden case
    Delivery Time: 5-7 working days after ordered
    Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability: 2000 pieces / month
    Contact Now
    Detailed Product Description
    Thick Of Steel: 1.5mm Material: 304stainless Steel
    Passing Speed: < 40 Person/min Rod Length: 510mm
    Power Supply Voltage: AC220 ± 10%V, 50HZ Working Temperature: -15°C ~ 50°C
    Communication Interface: RS485 Electrical Standard Or TCP/IP



    TCP / IP Tripod Full Height Turnstile Mechanical Rfid Control System




    Product Description


    1. Size:1200*280*1000mm
    2. Thick of steel:1.5mm
    3. Material:304stainless steel
    4. Rod length:510mm
    5. Design and size can be customized


    Technical:

    1. Structure: frame structure/standard stainless steel shell
    2. Production: full CNC laser cutting machine production
    3. Dimensions: length 1200 × width 280 × height 1000 (mm)
    4. Stainless steel thickness:1.5mm
    5. Maximum channel width :510mm
    6. Brake lever maximum tolerance: 80Kg
    7. gate opening time: 0.2 seconds
    8. prevailing speed: 30 people / min
    9. Communication Interface: Standard RS485 interface, distance ≤ 1200 meters or TCP / IP
    10. Power: 50W
    11. Power supply voltage: AC220 ± 10% V, 50HZ
    12. drive motor: brushless DC motor (24V)
    13. brake lever driving force:3kg
    14. LED indicator: 1
    15. reader windows: 2
    16. access speed :30-40 / min
    17. power on the prevailing state required time: 3 seconds
    18. failure automatically reset after time: 10 seconds
    19. input interface: dry contact signal or +12 V level signal or pulse width ≥ 100ms DC12V pulse
    20. signal, driving current ≥ 10mA;
    21. Working environment: indoor, outdoor (with shed)
    22. Temperature: -10 °C ~ 50 °C Relative humidity: ≤ 90%, no condensation.


    Structure

    frame structure/standard stainless steel shell

    Production

    full CNC laser cutting machine production

    Maximum channel width

    550-600mm

    Gate opening time

    0.2 seconds

    Power

    50W

    Drive motor

    brushless DC motor (24V)

    Working life

    3,000,000

    LED indicato

    1

    Reader windows

    2

    Power on  state required time

    3 seconds

    Failure automatically reset time

    10 seconds

    N.W.

    80KG






    TCP / IP Tripod Full Height Turnstile Mechanical Rfid Control System
