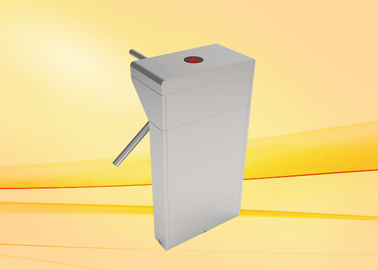

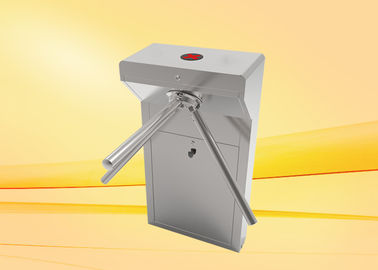

Indoor / Outdoor Security Tripod Turnstile , security turnstile gate for accee control

Indoor / Outdoor Security Tripod Turnstile , security turnstile gate for accee control

    • Indoor / Outdoor Security Tripod Turnstile , security turnstile gate for accee control
    • Indoor / Outdoor Security Tripod Turnstile , security turnstile gate for accee control
  • Indoor / Outdoor Security Tripod Turnstile , security turnstile gate for accee control

    Product Details:

    Place of Origin: China
    Brand Name: Granding
    Certification: CE/FCC
    Model Number: TS-100

    Payment & Shipping Terms:

    Minimum Order Quantity: 5pcs
    Packaging Details: Packed in carton ( wooden can be available if in special amount and requirement)
    Delivery Time: 2 working days after received your payment
    Payment Terms: T/T in advance
    Supply Ability: 5,000pcs per week
    Contact Now
    Detailed Product Description
    Product Name: Tripod Turnstile IP Grade: IP54
    Material: SUS304 Stainless Steel Material Direction: Both Direction
    Verification Mode: Contain Driver Control Board Power Supply: 110-220V

    Vertical Tripod Turnstiles System With Power Supply , IP54 Ingress Protection



    Features:



    1. The TS100 tripod turnstiles are designed in compact structure.

    2. The optimal cost effectiveness, low power consumption, and the high operating reliability, make this semi-automatic tripod turnstile quite popular home and abroad.

    3. Coming with the default mode of locking, the vertical tripod turnstile will be actuated for the passage of one passenger once receiving authorization signal.

    4. The access control turnstile is electronically controlled in both directions. It is possible for users to set up free passage at one direction.

    5. In case of emergency, the arms of the tripod turnstile will be lowered for rapid evacuation.

    6. The electromagnet can be used for locking when it is activated. When the machine is in idle status, the electromagnet is in standby mode.

    7. Made of SUS304 stainless steel, this product can be designed with flexible reader installation plate, for the integration of the reader from the third party.





    Specifications



    Reader Type

    Operating Temperature

    Access control panel, no reader

    -28°C-60°C

    Power Supply

    Working Environment

    AC 220V/110V, 50/60Hz

    Indoor/Outdoor (with shelter)

    Rated Power

    Operating Humidity

    60W

    5%-85%

    IP Rating

    Pictogram Indication

    IP54

    Yes

    Housing Material

    Control System

    SUS304

    Input controlled by dry contact

    Emergency Button

    Passenger Flow

    Yes

    25-48 passengers/minute

    Package Data

    Optional Function

    Net weight: 34kg
    Gross weight: 40kg
    Product size: 52×98×28cm+arm length 50cm
    Package size: 60×108×38cm

    Customized material or structure, third-party access control, ticket system, passenger counter.
