Durable Automatic Swing Barrier Gate Pedestrian Turnstiles CE Approved

Product Details:

Place of Origin:	china
Brand Name:	TDZ
Certification:	CE
Model Number:	TDZ - B120

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	USD 600 - 1200 / Piece
Packaging Details:	paper carton/wooden case
Delivery Time:	5-7 working days after ordered
Payment Terms:	T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability:	2000 pieces / month

Contact Now

Detailed Product Description

Opening Pattern:	Automatic	Size:	14002801000mm
Thick Of Steel:	1.5mm	Material:	304stainless Steel
Passing Speed:	< 40 Person/min	Arm Rotation Angle:	180
Power Supply Voltage:	AC220 ± 10%V, 50HZ	Swing Direction::	One-way Or Two-way
Communication Interface:	RS485 Electrical Standard Or TCP/IP	Working Environment:	Indoor And Outdoor With Shed
High Light:	Turnstile Door , Pedestrian Barrier Gate

Durable Automatic Swing Barrier Gate Pedestrian Turnstiles CE Approved

Durable Automatic Swing Barrier Gate Pedestrian Turnstiles CE Approved 0

Standard Product Features:

1)Having functions of checking fault by self and alarm, it's easy to maintain and use for user;

2)The operating status of the equipment can be set by a small built dish of the main panel;

3) The flap barrier has mechanical structure, double anti-pinch function. When the swing arm meet resistance during reset, the motor will stop working automatically or stopping in the default time, then reset again after the default delay (until reset), and the intensity is very small (≤ 2Kg);

4) sound and light alarm function: with unlawful entry, trailing alarm;

5) scour protection function, when the gate signal is not received, the arm automatically locked;

6) telescopic boom synchronization capabilities;

7) With automatic reset function: after the gate opening, if the people not pass within a specified period, the system will automatically cancel the access rights of the user. The standard is automatic reset after five seconds;

8)The barrier will open automatically when the power off, and barrier will close automatically when it has power;

9) can be connected to a variety of reader device, received switch signal of relay;

10)unidirectional or bidirectional control personnel access;

11) can be directly managed by remote control and management of computer;

Quick Details

Size:1400*280*1000mm
material and color are optinal
Material:304stainless steel
turnstile manufacturer,factory price
OEM welcome

Introduction
Appearance GB(304) stainless steel plate stamping molding,nice shape,rust-proof and durable.Besides foreign standard electrical interface,bar code,ID card,IC card reader can be integrated in the equipment. They are used most commonly in train stations, airports, theme parks, museums and office lobbies.

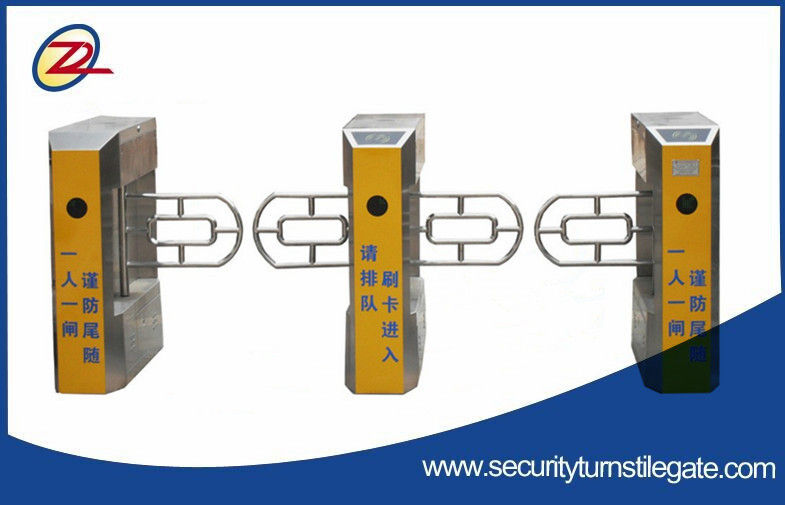

Picture of turnstile gate

Technical Parameters
Framework	304(standard)/316 grade stainless steel
Dimensions
	Bridge turnstile:14002801000mm
Arm rotation angle	180
Weight	90kg.
Operating Mode	one-way or two way control
Power supply voltage	AC220 ± 10%V, 50HZ
Interface	standard RS485/distance≤1200m or TCP/IP.
Gate opening time	0.2 second
Transit speed	30-40 persons per minute
Working environment	indoor or outdoor
Temperature	-10 Celsius to 50 Celsius
Relative humidity	:≤90% no condensation
Main Features&Function
1. Available in single walkway or bi-directional passage.Both directions can be set as controlled mode or free mode.
2.Self-recovery function:the machine will recovery automatically with invalid counting if passage is not completed within pre-set time(5 seconds default,adjustable by software).
3.Multi-alarm function:When arms are pushed by force illegally,alarm will be triggered automatically and the center rotor will be set locked(the duration of the alarm and lock is adjustable by software).
4. Emergency escape function:the obstacles will open automatically by pressing the emergency button which can be remote-controlled whether the power is on or not.
5.Smart card reader compatible with a variety of card such as IC and ID card.
6.Can be expanded to automatic identification system,realizing function to access control, pedestrian flow control,attendance check or fare collection.
7.Equipped with international standard electrical interface,can be easily integrated with other R/W device,also can be controlled and management through remote supervision computer.
8.Control panel with count and LED digital function.
9.Optional traffic-light: A Red Cross symbol will illuminate to indicate unit is not available for pass, and a green arrow indicate the direction of allowable pass.

Durable Automatic Swing Barrier Gate Pedestrian Turnstiles CE Approved 2

Durable Automatic Swing Barrier Gate Pedestrian Turnstiles CE Approved 3

Our service

Visit our factory free.
Reply your inquiry in 24 working hours.
Professional staff answer your questions in English.
Customized design is available,we can accept OEM & ODM.
Unique problems can be made solution by our professional engineers.
Special discount and protection of our distributors or agents in their area.

CE certification
