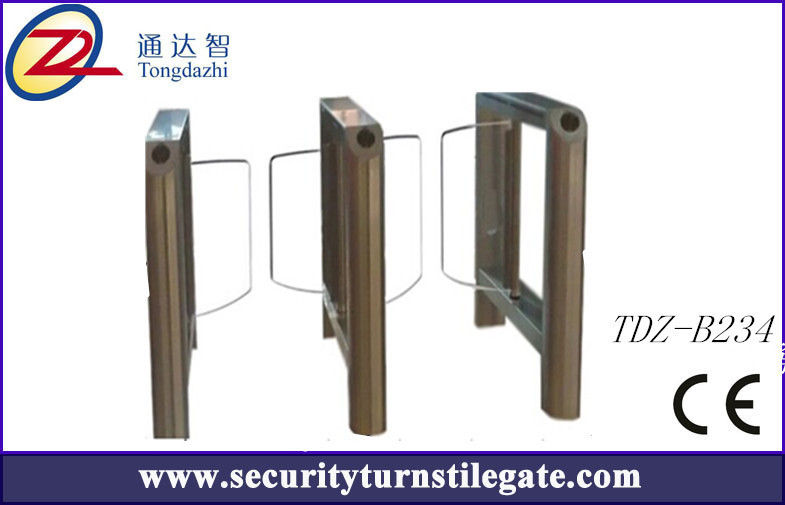

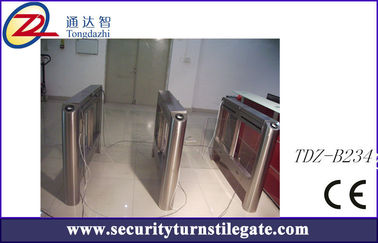

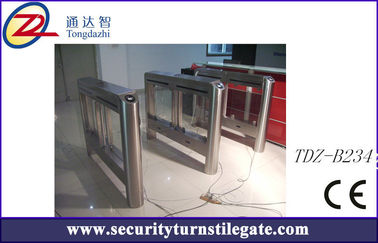

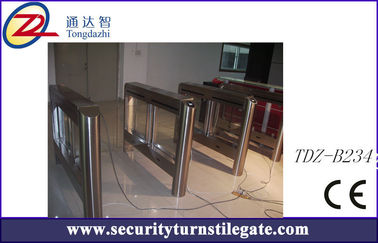

ODM 304 stainless steel Swing Barrier Gate RFID turnstile Entry Systems

Compatible ODM Steel Barrier Gate Rfid Turnstile Gate Entry Systems

The material is standard 304 stainless steel, during the casing whithin a professional guide tank.. Can be installed in indoor, outdoor with shed, applicable to restrict the passing rate of the place, has the count, attendance, current limiting funtion. The enterclose are more wider than others.Have a higher traffic capacity, can make motorcycle, bicycle and other small vehicles through, also can be used as a barrier-free access.

Universal design

Through its modern shape and reliability it is suitable for numerous tasks, in almost any environment. Like office buildings, sport facilities, or industrial areas. Several design and operating modes are available to best suit the task at hand, including indoor and outdoor versions. It has a bi-directional control system, and the arms can also be adjusted to free movement per passing direction.


Safe

In case of emergency the dropping arm function automatically releases a lock which drops the upper arm of the turnstile from a horizontal position into a vertical one. It can be triggered by a security and fire alarm system, button press, or a power supply unit. During a power outage, the turnstile can be rotated freely.


Convenient

Due to the two-legged design, the devices form an unmistakable entry path, and prevent the users from stumbling in the inactive bars, which are situated between the legs of the turnstile. This mechanism allows an easy and carefree pass-through.


Reliable & Durable

Under the elegant and clean surface hides a robust mechanism, which fulfils the need for the entry system to be always available and makes it durable.
System integration

Can be integrated with any access control or token systems through dry contacts.

Card reader integration

An RFID reader can quickly and easily be fitted into the pre-designed reader slot, which maintains the unified, compact appearance, and prevents injury to the surface caused by a mounted device.

Customisable design, unique appearance

High-end technology and reliable operation comes in a stylish and elegant design. Available in standard and custom colours and appearance.

Customisable design, unique appearance

High-end technology and reliable operation comes in a stylish and elegant design. Available in standard and custom colours and appearance.

Technical:

1. Structure: frame structure/standard stainless steel shell

2. Style: Luxurious

3. Dimensions: 1200*180*1000mm

4. Stainless steel thickness:1.5mm

5. Arm length: :600-900mm

6. Brake lever maximum tolerance: 70Kg

7. Gate opening time: 0.2 seconds

8. Prevailing speed: 30 people / min

9. Communication Interface: Standard RS485 interface, distance ≤ 1200 meters or TCP / IP

10. Power: 50W

11. Power supply voltage: AC220 ± 10% V, 50HZ

12. Drive motor: brushless DC motor (24V)

13. Brake lever driving force:3kg

14. LED indicator: 1

15. Reader windows: 2

16 Access speed :30-40 / min

17. Power on the prevailing state required time: 3 seconds

18. Failure automatically reset after time: 10 seconds

19. Input interface: dry contact signal or +12 V level signal or pulse width ≥ 100ms DC12V pulse signal,

 driving current ≥ 10mA;

20. Working environment: indoor, outdoor (with shed)

21. Temperature: -10 °C ~ 50 °C Relative humidity: ≤ 90%, no condensation
