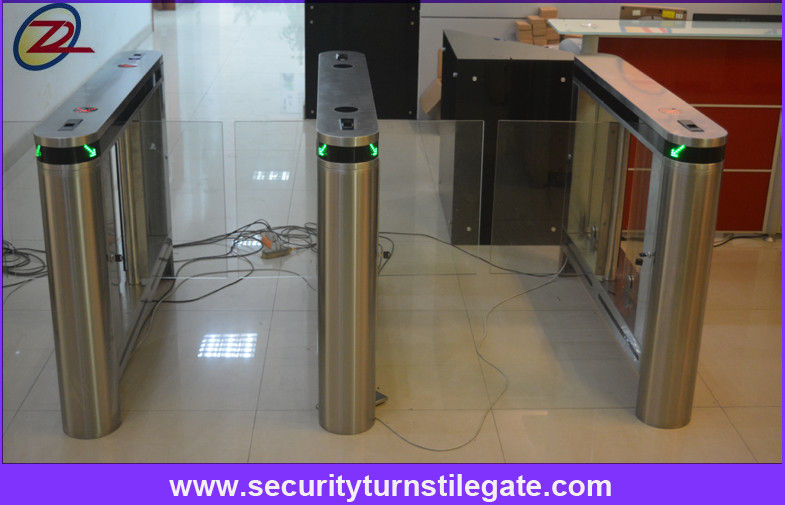

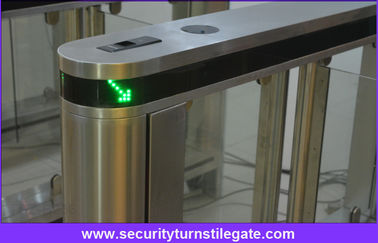

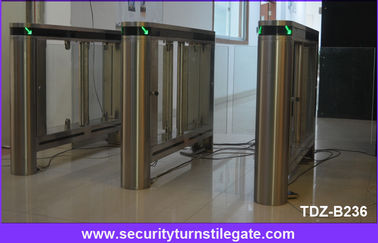

Rfid card reader swing barrier gate waterproof RS485 Interface

Product Details:

Place of Origin:	China
Brand Name:	TDZ
Certification:	CE
Model Number:	TDZ-B236

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	USD 500 -2000 / Piece
Packaging Details:	paper carton and wooden cases
Delivery Time:	3-4 working days
Payment Terms:	T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability:	200 pieces / month

Contact Now

Detailed Product Description

Dimension:	14001901000mm	Operation:	Fully Automatic Turnstile Motor
Channel Width:	600mm	Surface Treatment:	Brushed Surface Treatment
Turnstile Material:	304 / 316 Stainless Steel (optional)	Anti-pinch Function:	Yes
Normal Life:	3,000,000 Times
High Light:	Turnstile Door , Pedestrian Barrier Gate

Rfid Card Reader Speedgate Turnstile Building Fingerprint Swing Barrier Gate

Rfid Card Reader Speed Gate Building Fingerprint Swing Barrier Gate

Product Descriptons:

◆ Swing Gate Turnstile designed by TDZ pursues the combination of artistic and modern elements, and it is very ideal for elegant location.

◆ Swing Gate Turnstile developed by TDZ has the widest passage which available for pedestrians, users with luggage or package and bicycles.

◆ The machine organically integrates machinery, electronics, microprocessor control and a variety of identification technologies, conveniently compatible with access control systems, barcode cards and biology identification equipment.

◆ The machine provides a high level of security and high capacity by adopting reliable security protection devices, alarm devices, direction indicators etc.

Technical Parameters

Material	304/316 stainless seel (optional)
Fishing	Brushed surface (standard) / Polishing surface
Dimension	14001901000mm
Swing arm length	600 - 900mm
Drive motor	Brushless DC motor (24V)
Power supply	AC220 (110) ± 10%V,50Hz
Working life	3,000,000 times
Communication Interface	RS485 / RS232,Ethernet
Transit Speed	20 - 35 passage / minute
Work Environment	Indoor / Outdoor (Shelter)
Use Place	Station,park,apartment,school,factory,bank,building

Function Specifications:

◆ Both directions can be set as controlled mode or free mode.

◆ NO mode & NC mode can be switched over by users easily & freely.

◆ Self-recovery function: the machine will recovery automaticlly with invalid counting if passage is not completed within pre-set time (5 seconds default, adjustable by software).

◆ Self-examine Function: it is convenient for users to maintain and use.

◆ Tailgating-detection function.

◆ Intruding-alarm function.

◆ Anti-pinch function: protection against finger entrapment and personal injury.

◆ Emergency-escape function: the obstacles will open automatically by pressing the emergency button which can be remote-controlled whether the power is on or not.

◆ With interface of relay switch (the dry contact signal or +12V electrical level signal or DC12V pulse signal of pulse width ≥ 100ms, driving current ≥ 10mA), compatible with all kinds of access controllers.

◆ Each machine can be set by Physical Address (Optional).

◆ Equipped with free control software for man-machine interface & control command SDK.

Customized Features:

◆ Alternative Materials, Finishes and Custom Design

◆ Access Control System Integration

◆ Ticket System Integration

◆ Camera System Integration

◆ Thermostat System Integration

◆ Remote-Controlled Button

◆ Usage Counters

◆ Waterproof and Dustproof Design: IP53 for mechanical module, IP65 for electric module

◆ SDK and technical support will be provided for Secondary development of software
