Shenzhen Turnstile Technology Co., Ltd.
High quality, Best service,Reasonable price.
 |
| Place of Origin: | china |
| Brand Name: | TDZ |
| Certification: | CE |
| Model Number: | TDZ - B236 |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 800 - 1500 / Piece |
| Packaging Details: | paper carton/wooden case |
| Delivery Time: | 5-7 working days after ordered |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 2000 pieces / month |
| Size: | 1400*190*1000mm | Passing Speed: | < 40 Person/min |
|---|---|---|---|
| Power Supply Voltage: | AC220 ± 10%V, 50HZ | Swing Direction:: | One-way Or Two-way |
| Package: | Wooden Caes | Lane Width: | 550mm (Max:900mm) |
| Warranty: | 12 Months | ||
| High Light: | Turnstile Door,Pedestrian Barrier Gate |
||
Stainless Steel Swing Barrier Gate Wing Turnstile Access Control Board
1. Swing Turnstile Descriptions:
The turnstile has the ability to control access smoothly and effectively.The machine is well in design, rustproof, durable and can resist external destroy.
Swing turnstile can be divided into fully automatic swing turnstile and manual swing. Fully automatic product can finish any work by power. The swing arm will automatically open when it is powered off. And the arm will automatically be closed when power is turned on again.
Manual swing has no controller, Do not have any related to electrical parts .
2. swing Turnstile Technical Parameters
| Framework | 304(standard)/316 grade stainless steel |
| size | 1400*190*1000mm |
| Channel Width | 600mm |
| Weight | 100kg. |
| Operating Mode | one-way or two way control |
| Power supply voltage | AC220 ± 10%V, 50HZ |
|
Motor |
0.5NM/24V(Fully Automatic) |
| Interface | standard RS485/distance≤1200m or TCP/IP. |
| Gate opening time | 0.2 second |
| Transit speed | 30-40 persons per minute |
| Working environment | indoor or outdoor |
| Temperature | -10 Celsius to 50 Celsius |
| Relative humidity | :≤90% no condensation |
|
Protection Grade |
IP54 |
|
Colour |
Stainless Steel Brushed / Powder Coating(Optional) |
| Operation Place |
Subway Station, Hoverport,Tourism Sports,Exhibition, Swimming Hall,Residence Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Charge Management,Special Access Control |

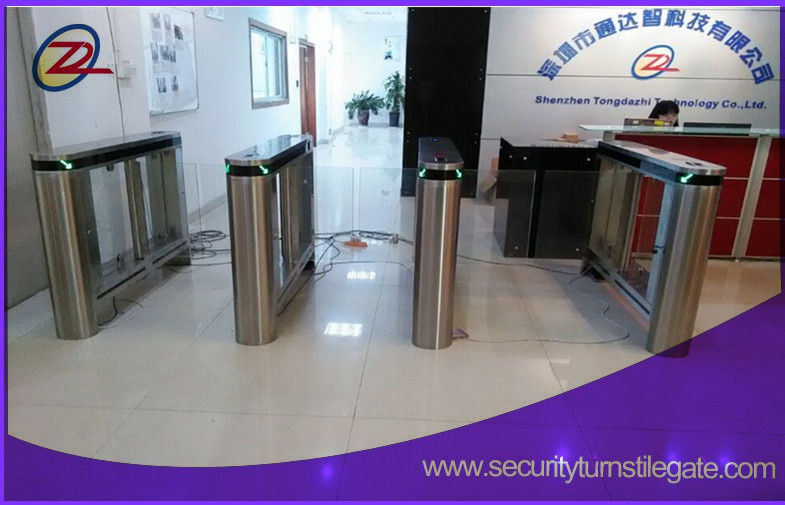

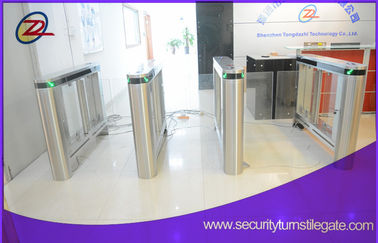

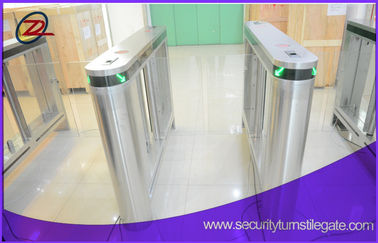

3.swing barrier detail
