Shenzhen Turnstile Technology Co., Ltd.
High quality, Best service,Reasonable price.
 |
| Place of Origin: | CN |
| Brand Name: | Fujica/OEM |
| Certification: | ISO, CE |
| Model Number: | FJC-1128 |
| Minimum Order Quantity: | 1sets |
|---|---|
| Packaging Details: | Wooden Case |
| Delivery Time: | 5-10 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 500sets/month |
| Lane Width: | 500-550mm | Housing Size: | 1400*280*950mm |
|---|---|---|---|
| Housing Material: | Stainless Steel 1.5-2mm 304# | Transit Speed: | 40 Persons/min |
| Usage: | Access Flap Barrier | Size:: | 4.5*1*3ft |

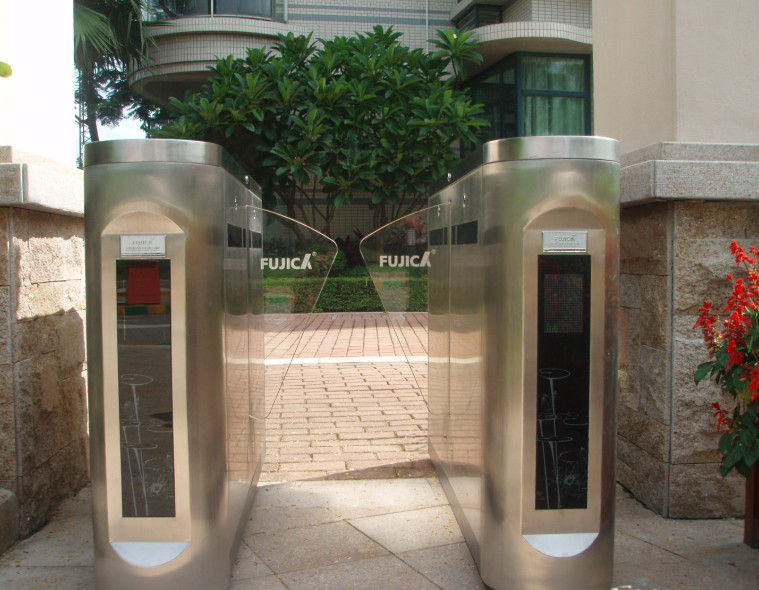

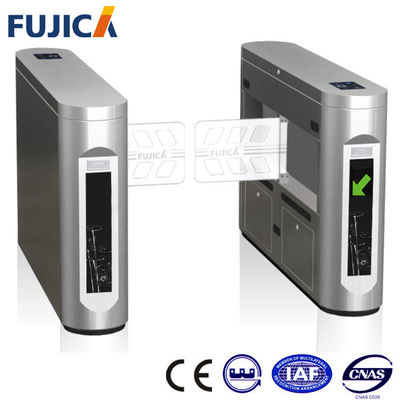

Park Zoo Speed Gate Systems Biometric Reader Charge Counting Stainless Steel Turnstiles
| Technical Data | |
| Power consumption | 50W/pc |
| Housing Size | 1400*280*950mm (4.5*1*3ft) |
| Housing material | 1.5--2mm, 304# stainless steel, anti-rust |
| Power Supply | AC 220V or 110V |
| Channel width | 500--550mm |
| Transit speed | 40 persons/min |
| Communication Interface | RS485 |
| Input signal optional | DC12V level signal or DC12V pulse signal |
| Gate open in the case of power failure | -30℃ to +70 ℃ |
| Working environments | indoor,outdoor |
| Relative humidity | ≤95% coagulation free |
| MCBF | ≥3,000,000 cycles |
|
Product Description
|
|
| 1.Be compatiable with a variety of Mifare/RFID card readers, for various cards,etc. | |
| 2.Be compatiable with other pedestrian barriers in one same system. | |
| 3. Alarm at unauthorized entry, tailing attempts & reverse pass, together with anti-clamping function to protect pedestrian, equipped with several couples of infrared sensors (photocells). | |
| 4.Counting function. (a) Flap closes after passing N pedestrians continuously by swiping card N (N<=16) times correspondingly (b) Pedestrian count (Optional by controller software). | |
| 5.LED direction indicator that displays present pedestrian pass status. Green arrow for entry free, and red cross for passage locked. | |
| 6.Can be expanded to automatic identification system or fare collection (card collection), such as subway ticket, employee checking-in, access control,etc. |
|
| 7.Can set always open or always close. | |
| 8. Other Optional: (a)Two-color light flaps, indicating open or close status. (b)Optional with Fujica or other logo on the transparent flap. (c) Can set up sound prompt | |
| 9.Optional Extras: (a)Gate open in the case of power failure (b)Automatic heater in the cabinet for extreme cold weather. | |
 |
|
