Ticket in ticket out for pedestrian access control flap barrier

Ticket in ticket out for pedestrian access control flap barrier

  • Ticket in ticket out for pedestrian access control flap barrier
  • Ticket in ticket out for pedestrian access control flap barrier
  • Ticket in ticket out for pedestrian access control flap barrier
Ticket in ticket out for pedestrian access control flap barrier
Product Details:
Place of Origin: CN
Brand Name: Fujica/OEM
Certification: ISO, CE
Model Number: FJC-Z1138
Payment & Shipping Terms:
Minimum Order Quantity: 1sets
Packaging Details: Wooden Case
Payment Terms: T/T, Western Union
Supply Ability: 500sets/month
Contact Now
Detailed Product Description
Lane Width: 500-550mm Housing Size: 1400*280*950mm
Housing Material: Stainless Steel 1.5-2mm 304# Transit Speed: 40 Persons/min
Usage: Pedestrian Flap Barrier



Security Ticket In Ticket Out Flap Barrier Gate For Pedestrian Access Control



Fujica Product Description:


1. Be compatiable with a variety of Mifare/RFID card readers, for various cards,etc.


2. Be compatiable with other pedestrian barriers in one same system.


3. Alarm at unauthorized entry, tailing attempts & reverse pass, together with anti-clamping

function to protect pedestrian, equipped with several couples of infrared sensors

(photocells).


4. Counting function. (a) Flap closes after passing N pedestrians continuously by swiping

card N (N<=16) times correspondingly (b) Pedestrian count (Optional by controller software).


5.LED direction indicator that displays present pedestrian pass status. Green arrow for

en try free, and red cross for passage locked.


6. Can be expanded to automatic identification system or fare collection (card collection),
such as subway ticket, employee checking-in, access control,etc.


7. Can set always open or always close.


8. Other Optional itmes: (a)Two-color light flaps, indicating open or close status. (b) Optional

with Fujica or other logo on the transparent flap. (c) Can set up sound prompt


9. Optional Extras: (a) Gate open in the case of power failure (b)Automatic heater in the

cabinet for extreme cold weather.



Structure:

Technical Data
Power consumption 50W/pc
Housing Size 1400*280*950mm (4.5*1*3ft)
Housing material 1.5--2mm, 304# stainless steel, anti-rust
Power Supply AC 220V or 110V
Channel width 500--550mm
Transit speed 40 persons/min
Communication Interface RS485
Input signal optional DC12V level signal or DC12V pulse signal
Gate open in the case of power failure -30℃ to +70 ℃
Working environments indoor,outdoor
Relative humidity ≤95% coagulation free
MCBF ≥3,000,000 cycles

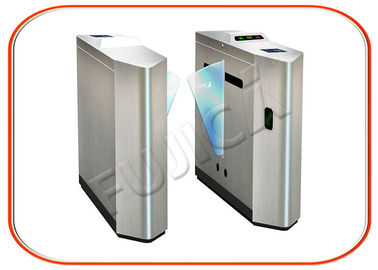

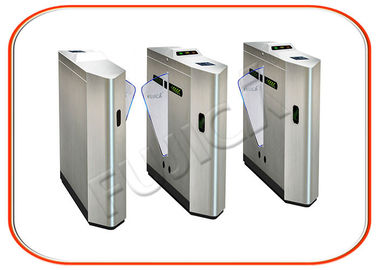

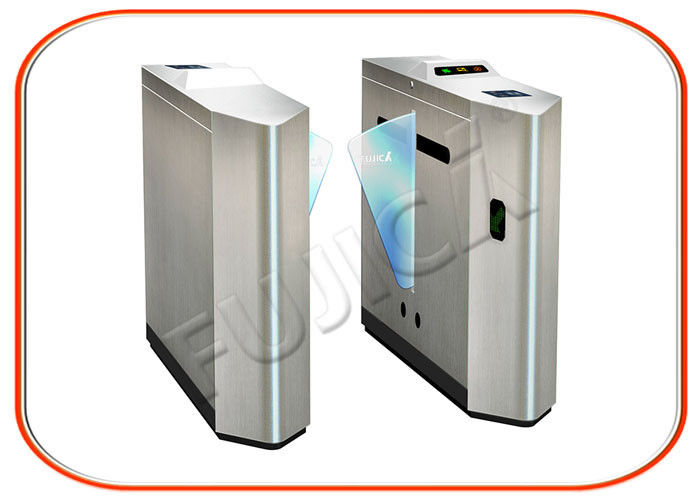

Products Photo

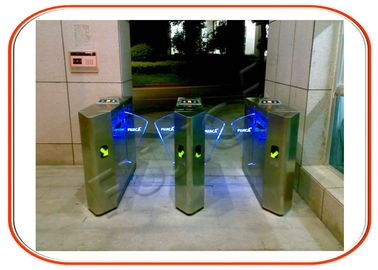

Applications
Packaging & Shipping
Company Photos



FAQ:



1. What is your system communcation mode?
   We use RS485 as the the equipment communication port.



2. Is TCP/IP can be used in the system?
   Yes, you can connect your reader with TCP/IP communication. Fujica Flap barrier just need

connect wire to your reader.



3. How to connect to Fujica flap barriers with card reader/biometric reader?
   Just need a relay/dry contact switch cable from the reader.



4. Does Fujica flap barrier need provide software or software SDK for develop?
   No, don't need.  Fujica flap barrier only need a signal from reader. Then it can be

open/closed. No need software from Fujica flap barrier.  But whole access control system is

normally provided by customer or integration company.



5. Which kind of reader should be bought to match Fujica flap barrier?
   Pls provide the readers' specification and size to us, then we can know it if can be

installed or connected to fujica flap barriers.
