Access control system RFID card electronic turnstile barrier swing barrier gate

Access control system RFID card electronic turnstile barrier swing barrier gate

Access control system RFID card electronic turnstile barrier swing barrier gate

Product Details:

Payment & Shipping Terms:

Minimum Order Quantity: 1 Pair/Pairs
Packaging Details: wooden case or carton
Delivery Time: 3-7 working days after payments
Payment Terms: T/T,Western Union
Supply Ability: 1000 Pair/Pairs per Month
Contact Now
Detailed Product Description

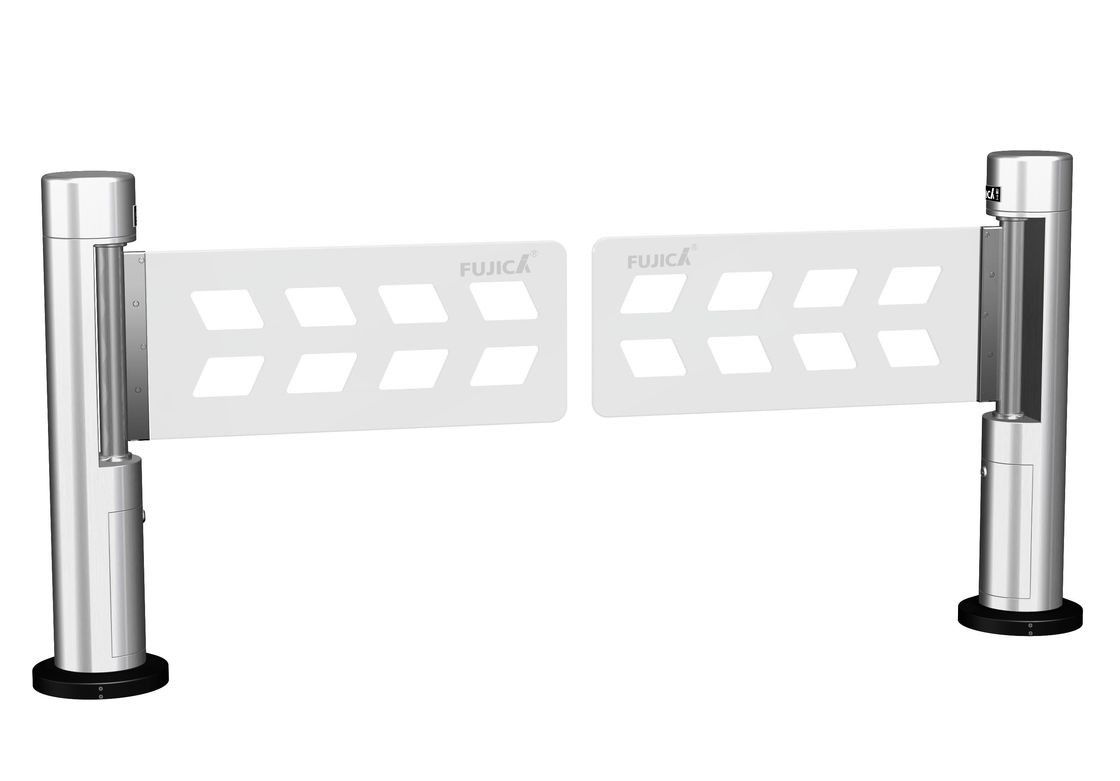

swing barrier gate
1.material:stainless steel
2.working interface:RS485/TCP
3.long life time
4.CE certificate

Access control system RFID card electronic turnstile barrier swing barrier gate

Technical parameters for swing barrier gate:

Item

Specification

Type

Auto

Dimension:

1200*280*990mm

Power

AC220C±10V,50HZ

Swing angle

0°-180°

Operating Temperature

-15°C-75°C

Relative Humidity

<;90%, No concretion

Communication Distance

≤1200m

Passing Speed

30-40 Persons/min

Input Connection

+12V Level Signal or Pulse Wide>100ms DC12V pulse, Current>10Ma

Communication Connection

RS485 Communication

Material

SUS304

Protection class

IP54

Application

Subway Stations, bus stations, parks, schools, factories, Hoverports, Tourism Sports, Exhibition, Swimming Hall, Residence Area, Enterprise’s Entrance and Exit Attendance, Gateway Guard, Charge Management, Special Access Control and so on

Functions and features of swing barrier gate:

1. Problem-self-checking function.

2. Many options of working ways: bi-direction cards reading; one direction card reading and another no reading; one direction card reading and another freely. And single direction photocell controlled passing and close. Working ways can be set in the control panel.

3. When power off, arm open automatically and power on again, arm will be held automatically.

4. When valid card read and passenger passed, arm can be delayed to close from 1-60s which can be set in the control panel.

5. Auto-reposition function:After card read, passenger not pass within regulated time period, full-height turnstile will cancel this passing right. And the regulated time period for passing can be set by managers.

6. If passenger pass without card read or valid card read, flap barrier will alarm until passenger get back from the flap barrier and then take a valid card to be read for passing.

7. Swing barrier is with485 interfacesfor long-distance control concern.

8. Anti-rush function:if there is no open single, arm will be holding tightly.

9. Double anti-clipping function:photocell anti-clipping and mechanical anti-clipping.

When passenger is going through the swing barrier, photocell will detect out this situation and will not close. After passenger passed, arm will close automatically. During its reposition, if arm meets any obstacle, arm will get back automatically or stop working for a while with very slight force. Also it will alarm.

10. Swing barrier is withstandard electrical interfacefor the integration of various readers and writers.

11. Swing barrier can count how many passengers have passed and will show it in the LED display.

12. Direction displayto guide passenger which direction is to go.

13. Card-reading with memory or without memory function.

14. Swing barrier can control the population inside in the control of software.

15. Stable running with little noise.

Swing barrier gate project:

Subway Stations, bus stations, parks, schools, factories, Hoverports, Tourism Sports, Exhibition, Swimming Hall, Residence Area, Enterprise’s Entrance and Exit Attendance, Gateway Guard, Charge Management, Special Access Control and so on

Customer service:
1.All items have 24 month quality guarantee.
2. Custom design shape and logo, for large amount, custom logo available for free.
3. Supported by professional engineers.
4. Special discount of our distributors or agents in their area.
5. Packing in standard export carton, suggest you pack it by wooden case to protect the products
6. CE, ROSH available.


Fast leading time:

For standard item
10-50 sets:5 working days
50-100 sets:7-10 working days
200-500 sets:10-15 working days
For special item, or need custom design package or logo, need 3-10 working days longer


Goldantell Turnstiles, factory price, high quality, welcome your inquiry!
