Place of Origin: | Flap Barrier Made In China |
Brand Name: | WTD barrier gate |
Certification: | CE |
Model Number: | WTD-B606-1 |
Minimum Order Quantity: | 1 |
---|---|
Packaging Details: | WOODEN BOX |
Delivery Time: | 10-15 day |
Payment Terms: | T/T ,Western Union,Paypal etc.. |
Supply Ability: | 1000 Set/Month |
Product Name:
Specifications

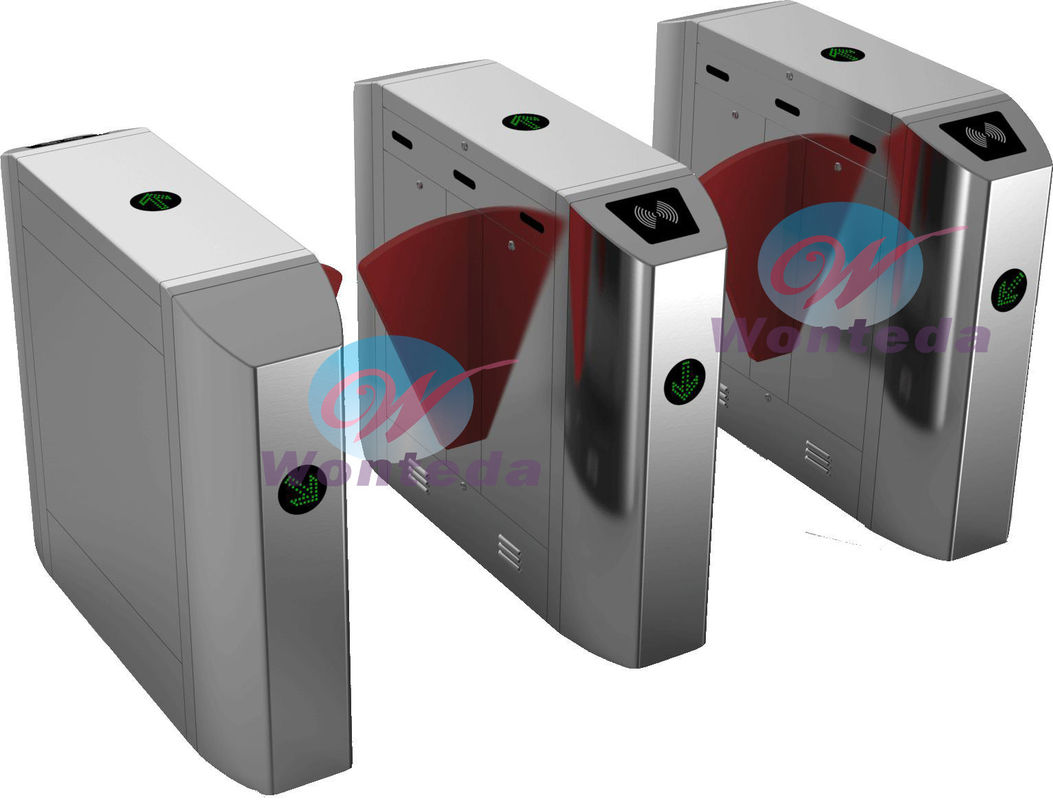

High quality automatic flap barrier gate
1.304#Stainless steel material.
2.4-9 Pairs Infrared Sensor to anti-tail, anti-clamp fingers
3.Self-recovery function.
4.Indoor or outdoor (added the rainshed) .
5.Anti-collision function.
Product Description:
Flap barrier gate operates quite swiftly and safely,suitable for area where have a large flow of people need to be monitored. The equipment conveniently compatible with access control system, barcode cards, biology identification equipment.
Technical Parameters :
Housing Material: | 304# Stainless Steel at 1.5mm(Stainless steel 304 option) |
Power | AC220C±10V,50/60HZ; |
Size: | 1200*300*1000 |
Passage width | 600mm |
Arm length | 260MM |
Drive motor | DC 24V brushed motors |
Power | 50W(single flap) 100W(double flap) |
Pass speed | 30-40 people per minute |
Weight | 85kg(single flap) 125kg(double flap) |
Opening and Closing time | ≤ 0.4S |
Finishing surface | Brushed surface (Standard) / Polishing surface |
Temperature | -30°C to +70 °C |
Operating humidity | ≤95% no condensation |
Operating environment | Indoor/outdoor (Shelter) |
Communication Interface | RS485,distance <1200mm |
Input signal optional | DC12V/dry contact/RS485/ |
Barrier Material(arm meterial) | Acrylic glass, Organic glass / Tempered glass (Optional) |
Traffic-light Indication | 3 |
Housing Colour | Stainless Steel Brushed / Powder Coating Colour (Optional) |
MCBF | 3,000,000 cycle |
System function:
You can custom made appearance of turstiles can choose 316 stainless steel or each color of iron baking varnish
