|Place of Origin:||china|
|Model Number:||TDZ - E601|
|Minimum Order Quantity:||1 piece|
|Price:||USD 600 - 1200 / Piece|
|Packaging Details:||paper carton/wooden case|
|Delivery Time:||5-7 working days after ordered|
|Payment Terms:||T/T, L/C, D/A, D/P, Western Union, MoneyGram|
|Supply Ability:||2000 pieces / month|
|Thick Of Steel:||1.5mm||Material:||304 Stainless Steel|
|Passing Speed:||< 40 Person/min||Weight:||90 Kg|
|Power Supply Voltage:||AC220 ± 10%V, 50HZ||Drive Motor::||Brushed DC Motor 24V|
|Communication Interface:||RS485 Electrical Standard Or TCP/IP||Working Environment:||Indoor And Outdoor With Shed|
arm barrier gate,
security barriers and gates

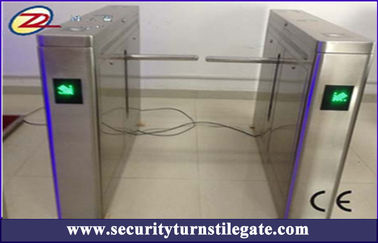

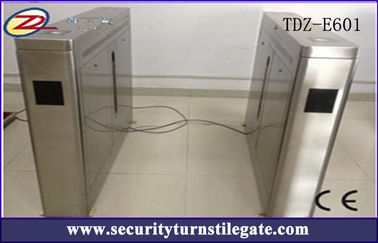

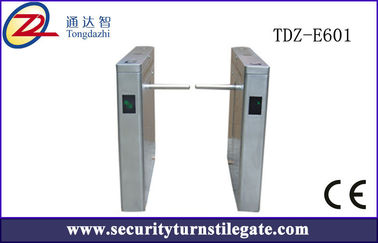

Automatic Barrier Gate Arms Subway Turnstile with CE Approval
Material using a standard 304 stainless steel cabinets design professional chute can be installed in indoor, outdoor, suitable for buildings, pavilions, gymnasiums and other occasions, with the count, attendance, current limiting function.
1. Standard chassis:2 pieces
3.Main control panel: 2 pieces
6.Infrared radiation : 6 sets
7.Alarms indicator: 2 pcs
8.Direction indicator panel:2 pcs
9.dimensions: 1200 L * 180W * 1000 high (MM)
10.Swing direction:Single ,bi-directional
11.Power supply voltage: AC220±10% V,50HZ
12.Drive motor:Brushed DC motor 24V
13.Input interface:+DC 12V level signal or DC 12V pulse signal(pulse width>100ms)
dirve current> 10 mA
14.Communication interface:RS485 electrical standard ,
15. Prevailing speed:40 passengers/min(normally open)25-30 passengers/min(normally closed)
16.Gate opening/clearance time:1 second
17.Time required to enter the access state on power:3 seconds
18.Automatically reset the time after failure:10 seconds
19.Working environment: indoor and outdoor
20.Ambient temperature: -10 Celsius to 50 Celsius,Relative humidity: ≤90% no condensation
1. Stainless steel box, box-type bevel shape, novel and beautiful, durable.
2. Waterproof, sunscreen, anti-temperature, anti-cold.
3. Access Prompt function: Red and green light prompt the passing information.
4. The programmable gates control state, with a variety of operating modes you can choose, you can set a one-way or two-way control
5. Compatible IC, ID, magnetic card, bar code card, and other control equipment.
6. Power failure emergency function after power channel automatically open, closed automatically after power-on, to meet the special needs of the user and the fire safety requirements
7. The control panel with counting function, LED digital display function (optional)
8. The standard input and output interface, is the best choice for system integrators
9. Sound, light alarm function: with trespassing, trailing alarm
10. Scour protection function ,when the gate signal is not received, the stick is automatically locked
11. Fault detection and alarm function, user-friendly maintenance and use
