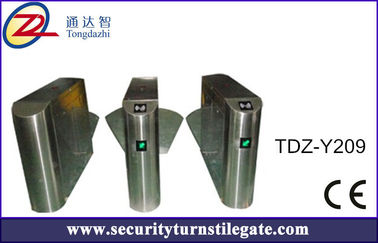

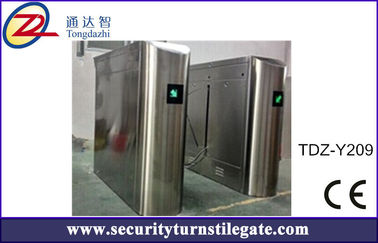

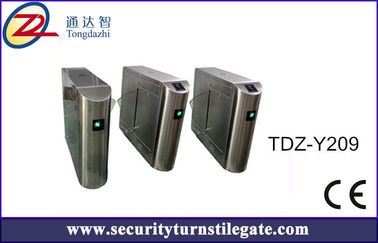

Bidirectional Flap Barrier Gate RFID Turnstile for museum , airport

Bidirectional Flap Barrier Gate RFID Turnstile for museum , airport

  • Bidirectional Flap Barrier Gate RFID Turnstile for museum , airport
  • Bidirectional Flap Barrier Gate RFID Turnstile for museum , airport
Bidirectional Flap Barrier Gate RFID Turnstile for museum , airport
Product Details:
Place of Origin: China
Brand Name: Tongdazhi
Certification: CE
Model Number: TDZ -Y209
Payment & Shipping Terms:
Minimum Order Quantity: 1piece
Price: USD800-1300piece
Packaging Details: paper carton and wooden case
Delivery Time: 3-5working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 pieces per month
Contact Now
Detailed Product Description
Size: 1200*300*1000mm Material: 304stainless Steel
Thickness Of Steel: 1.5mm Opening Pattern: Automatic
Passing Speed: < 40 Person/min Working Temperature: -15°C ~ 50°C
High Light:

Flap Barrier Turnstile


Pedestrian Turnstile Gate


Bar code Ticket System Bidirectional Flap Barrier Gate RFID Turnstile For Museum



TDZ Flap barriers are especially effective in areas where large numbers of people need to be

monitored. With anti-tailgating sensor technology ranging from simple to sophisticated, they provide

discreet control of the flow of visitors or employees when linked with access control systems.


Flap barriers offer efficient traffic flow in two directions. It's stylish, illuminated angel wing barriers change

colors to indicate the status of the lane to the user.


Applications for flap barriers include lobbies and more secure areas within corporate, governmental and

financial offices, museums, and airport or seaport passenger terminals.






Flap barrier

Power consumption

50 W

Housing Size

1200*300*1000 mm

Housing material

1.5 mm, 304# stainless steel,

Drive motor

DC brushless motor

Channel width

500--600 mm

Pass speed

30 persons/min.

Communication Interface


Input signal optional

DC12V level signal or DC12V pulse signal

flap open against power off


Working temperature

-30℃ to +70 ℃

Working environments


Relative humidity

≤95% coagulation free


3,000,000 cycles


Bidirectional Flap Barrier Gate RFID Turnstile for museum , airport 0


Flap Turnstile Functions& Features



1. Available in single walkway or bi-directional passage.Both directions can be set as controlled mode or free mode.



2.Self-recovery function:the machine will recovery automatically with invalid counting if passage is not completed within pre-set time(5 seconds default,adjustable by software).



3.Multi-alarm function:When arms are pushed by force illegally,alarm will be triggered automatically and the center rotor will be set locked(the duration of the alarm and lock is adjustable by software).



4. Emergency escape function:the obstacles will open automatically by pressing the emergency button which can be remote-controlled whether the power is on or not.



5.Smart card reader compatible with a variety of card such as IC and ID card.



6.Can be expanded to automatic identification system,realizing function to access control,

pedestrian flow control,attendance check or fare collection.



7.Equipped with international standard electrical interface,can be easily integrated with other R/W device,also can be controlled and management through remote supervision computer.



8.Control panel with count and LED digital function.

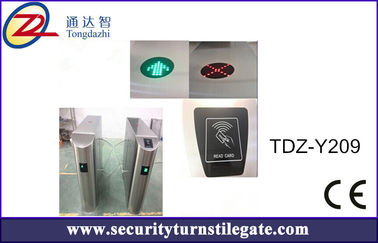

9.Optional traffic-light: A Red Cross symbol will illuminate to indicate unit is not available for pass, and a green arrow indicate the direction of allowable pass.
