Durable Automation Entrance Turnstiles With Visitor Management System



Product Attribute

Model	FJC-Z1358-S	FJC-Z1358-D
Item	Single flap barrier	Double flap barrier
Power consumption	50W	100W
Housing Size	1400x280x950 mm
Housing material	1.5--2mm, #304 Stainless Steel, Matt finish
Drive motor	DC brushless motor
Channel width	500--600mm
Pass speed	40 persons/min.
Power supply	220Vac 50Hz or 110Vac 60Hz
Input interface	Switch Volume or 12V Level
Communication interface	RS485
Gate open while power off	Yes
Working temperature	-30°C~+70°C
Working environments	Indoor, outdoor
Relative humidity	≤95% coagulation free
MCBF	3,000,000 cycles
Warranty	1 year
Outside packing	Plywood box, 1520 x 420 x 1140mm
Pieces per box	1 pcs / box
Gross weight	120KG		130KG



Product Display



Dimension



Product Details

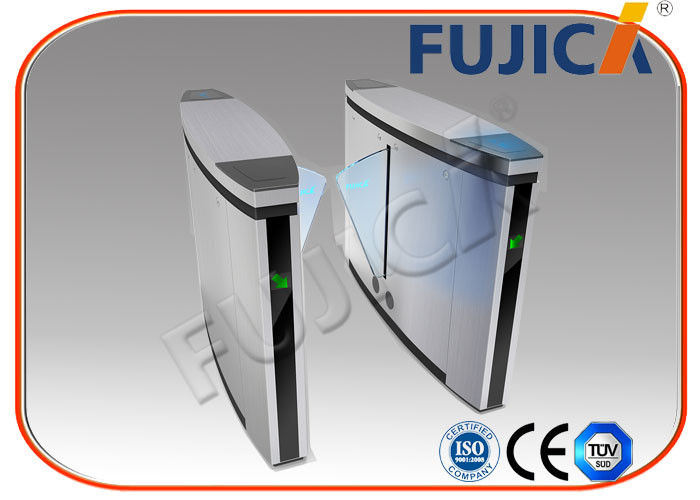

Fujica flap barriers are designed to control pedestrian entering and exiting, adopts stainless steel #304, double brushed surface treatment, dust-proof, rustproof, rainproof design, suitable for indoor and outdoor use, easy to integrate with other read/write devices, and widely use for applications like stadium, apartment, gym, museum, station, library and factory etc.



1. Provide normally open / normally close to satisfy management request.

2. Compatible with RF card readers, bar code readers, biometric readers, push button...

3. Equipped with infrared photocell, alarm while unauthorized entry or tailgating attempts, together with anti-strike function to protect pedestrian.

4.  Expanded to automatic identification system, access control system, Traffic control, attendance check and fare collection system etc.

5. Automatically reset : lock automatically while the pedestrian not pass the lane in the pre-set time after the flap opened. The passing time is adjustable.

6. Equipped with international interface, can be easily integrated with other R/W device and managed through remote supervision computer

7. (Optional) Support gate open while power failure and recover N/C mode after power on.

8. (Optional) Memory function. Can pass N pedestrians continuously by swiping card N times correspondingly (N<=16)

9. (Optional) Reversed passing alarm function, barrier will alarm if pedestrian pass from opposite direction after reading the card.

10. One direction or bi-direction is optional.





Configuration

• Matt finished housing surface,  dustproof and rainproof design for outdoor use.
• Durable DC brushless motor, highly integrated mechanism, 100% heavy duty operation.
• Sufficient infrared sensors for protection, anti-intrusion, and anti-tailgating.
• Compatible with other access control system.
• Convenient installation and maintenance.

• Government
• Banking
• Education
• Office building
• Gym/Stadium
• Factory







1. Can we use our access control system?

  Yes, equipped with international interface, can be easily integrated with other recognition devices.



2. If we buy your products, can you train us?

  Yes, we can provide training free of charge. You can send your engineers to us, we will train them in our factory.



3. Can you make it bi-directional? Any extra cost?

  One direction or bi-direction is available, no extra cost.



4. Can it use for outdoor?

   Yes, can be used for outdoor and indoor.



5. What's you warranty?

  We provide one year warranty. After that, we can supply chargeable spare parts.



6. What’s the material for the wings?

  Acrylic.

• Size:1540*420*1180mm
• Gross Weight: 120 to 130KG
• Package: Export packing, plywood box.
