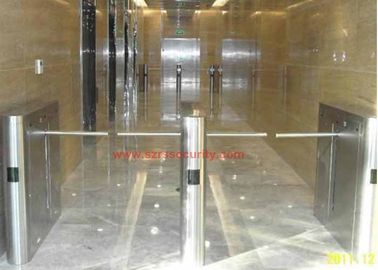

Emergency Drop Arm Available Barrier Fashionable Pedestrian IR Sensor Turnstile

Emergency Drop Arm Available Barrier Fashionable Pedestrian IR Sensor Turnstile

  • Emergency Drop Arm Available Barrier Fashionable Pedestrian IR Sensor Turnstile
  • Emergency Drop Arm Available Barrier Fashionable Pedestrian IR Sensor Turnstile
Emergency Drop Arm Available Barrier Fashionable Pedestrian IR Sensor Turnstile
Product Details:
Place of Origin: China(mainland)
Brand Name: RS Security
Certification: ISO,FCC,SGS,RoHS,CE
Model Number: RS 1009
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: 10000usd
Packaging Details: wooden box
Delivery Time: 3-8workdays
Payment Terms: TT
Supply Ability: 3000pcs/month
Contact Now
Detailed Product Description
Series: Drop Arm Turnstile Model: RS 1009
Color: Sliver Product Name: Rounded Drop Arm Turnstile
Material: 304 Stainless Steel Size: 1200*165*980mm
High Light:

security barriers and gates


biometric access control system


Emergency Drop Arm Barrier Gate Pedestrian IR Sensor Turnstile





Product Name:drop arm gate barrier/turnstile/gate


model:RS 1009


1.Automatic flap barrier


2.304 stainless steel




4.1 year warranty


5.CE FCC,ROHS,SGS approved

Security Drop Arm Barrier Waist High Turnstile Gate



RS 1009 waist high turnstile a high-tech product aimed at the pedestrian access intelligent


management, which is a upgraded product based on intelligent tri-turnstile, swing barrier, and similar to


wing barrier. This product is well-processed and newly-designed with full functions, high grade, and


mainly used in high grade places such as top-grade community, intelligent mansion, hotel, subway,


port, club etc. The product integrating with mechanism, electron, microprocessor and various


identification technology is compatible with card reader devices such as IC card, ID card, bar code,


fingerprint and so on. By configuring all kinds of identification devices and adopting reliable safeguard


devices, alarm devices, direction indicator etc, it is able to achieve acess intelligentized control and



access control turnstile gate, access control system, stainless steel tripod turnstile, stainless steel turnstiles, tripod turnstile system, full height turnstile gate, waist height turnstile, waist high turnstile, full high turnstile gate, full heigh turnstile system, security full height turnstile , flap barrier gate, swing barrier gate, supermarket swing gate, auto swing gate, speed gate, sliding turnstile, optical turnstile, speedlane, boom barrier, road barrier, subway gate.Tripod turnstile gate, turnstyle, turnstar, barrier gate, security gate, security turnstile gate, vertical tripod turnstile gate, bridge tripod turnstile, automatic tripod turnstile gate, semi-automatic tripod turnstile, tripod gate, tripod barrier, security turnstile system.

Main structure and configuration



2 standard caseworks


2 poles


2 electric control boxes


2 pcs logic panels


2 transformaers


2 electricmotors


2 sets of core and transmission parts


7 infrared devices


2 alarm annunciators



Drop arm gate Functions:


1. With function of self-examine and alarm, it is convenient for maintain and use.


2. Being able to program operation status by the small keyboard in the main board


3. Sophisticated sensor systems prevent pedestrians from being nipped and from hurt


4. System detects unauthorised entry passager and activates the inner alarm system.


5. Unit is automatically locked untill opening signal is received.

6. Poles synchronization (adjustable)

7. Automatically reset function: It will automatically lock if the pedestrian hasn‘t pass through the


channel in the pre-set time after the opening. The passing time is adjustable


8. Automatically open the gate when power off and automatically close when power on


9. Compatible with any access control system:accommodates a wide variety of operating modes for


maximum fexibility


10. One direction or bi-direction are optional


11. It can be directly controlled and managed by remote computer.


12. Color light on both side makes the cabinet more beautiful.


Extendable functions:




Length of framework and material of arm are optional.


Technical parameters:



Drop arm barrier specifications:



Framework material


304 stainless steel

Framework size



Standard length of pole


300mm(standard)/250mm to 600mm(option)

Net weight



Driving eletricmotor


DC 24V

Input interface


Dry contact signal or 12V level signal or


DC12V pulse signal


Driving current


> 10mA

Normal life-span


3million times

Communication interface


RS485 standard Distance less than




LED indicator



card reader window



Overhaul window



Transit speed


50-60 persons/min

Time for opening or closeing


1 seconds

Starting time after power is on


3 secconds

Automatic reset time after fault



Working environment


indoor, outdoor( with a tent over)

Working temperature



Relative humidity


≤90% no condensation
