High Speed boom Barriers / Outdoor Aluminum Barrier Arm Gate

High Speed boom Barriers / Outdoor Aluminum Barrier Arm Gate

  • High Speed boom Barriers / Outdoor Aluminum Barrier Arm Gate
High Speed boom Barriers / Outdoor Aluminum Barrier Arm Gate
Product Details:
Place of Origin: China
Brand Name: RS Security
Certification: CE SGS FCC RoHS
Model Number: RS 601
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Packaging Details: Wooden Box
Payment Terms: T/T, Western Union
Contact Now
Detailed Product Description
Length: 1-6meters Power: AC 220v 150 W
Housing Size: 340*232*1035mm Housing Color: Orange / Blue / Customized
Running Time: 6s Boom Type: 2fence Arm
High Light:

electric driveway gates


parking barrier gate

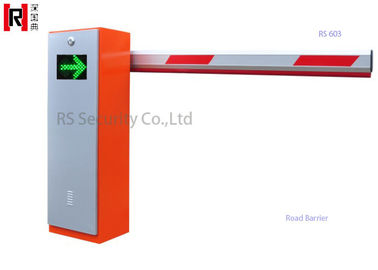

High Speed boom Barriers / Outdoor Aluminum Barrier Arm Gate






Product Name:Barrier Gate

Model:RS 603

Automatic Barrier gate:
1.automatic, heavy duty,
2.compatible with parking namagement system
3.high speed
4.intensive us



  1. The raise and fall of bar can be controlled by remote control
  2. Able to connect red and green lamps indicator ( optional)
  3. Able to connect infrared protection         (optional)
  4. Able to connect loop detector             (optional)
  5. Has tolling system interface              (optional)
  6. Over-heat protection for


Mechanism features:

  1. Gear motor drives barrier gate bar slow start grind to a halt, no- impact fast and steady movement, the operation range is limited within 90 degree for the bar, with zero accident. Quiet operation, noiseless, suitable for frequent raise and fall.
  2. Precise automatic tracking balancing mechanism makes static torque Zero for any position, which minimizes drive
  3. power and prolong service life.
  4. Barrier gate casing is made of advanced water-proof structure and anti-aging spray treatment, durable.


Tech parameter

  1. Size: 380*250*1010(mm),55KG
  2. Work power: AC220V 150W
  3. Raise and fall time: 3-6s ( adjustable)
  4. Work temperature: 30degree below zero to 85 degree up zero
  5. Barrier gate bar length: 3-6 meter ( optional)
  6. Humidity:  5%~95%
  7. Casing type: customized available



304 stainless steel

Input voltage

220V AC220±10%, 150w



Barrier gate bar


Net weight


Work temperature

-30 to 85


24V DC brush


5 to 95%

Raise and fall time


Input interface

Relay signal, 12V level signal,



Work environment



Competitive Advantage:

Our advantage:

l  We are a leading manufacturer of turnstile and speed gate in China.

l  We focus on pedestrian turnstile gates.

l  We keep stock for regular products and we can support small orders. Usually, our lead time is just 3 days.

l  Design products according to customers’ requirements.

l  Credibility: We are SGS certificated Supplier. Our customers are located over 50 countries

l  Gratitude: We cherish the business chance you give us and return you with quality products and good service.

l  Professional: We have been in this business for more than 8 years. We have a strong professional team with various experiences.

l  We keep doing new product development. Our goal is to enhance our competitive capacity constantly.

l  Price: very competitive price and good quality products

l  Quality: we do 100% inspection before the shipment.

l  Promise: we are always ready to take the responsibility if any loss caused to our customer due to our mistakes.

3. Genernal Information

Place of Origin:


Brand Name:

RS Security



Model Number:



4. Commercial Terms

Minimum Order Quantity:




Packaging Details:


Delivery Time:

2-3 days

Payment Terms:

Ex works

Supply Ability:

1000 PCS/month
