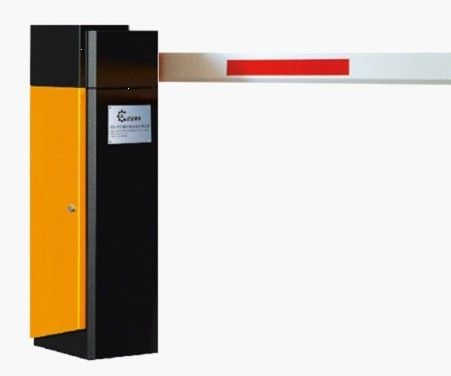

Boom barrier

~Features description:
D015 matches with ticket kiosk P-015, which was designed by Shenzhen Yimei Industry Design Company, and is popular in the market for its generous and novelty in appearance. It commonly use oil immersed cast iron reduction gear and aluminum foil reduction gear, barrier arm can be lifted by manual rocking-turn after power off which is very convenient.
1. Contactless detection during barrier gate running, high-precision linear dynamic code control, it makes the movement more accurate and stable.
2. Intelligent dynamic equilibrium detection and automatic balance adjustment optimizes motor and mechanical work condition, which can calmly solve unbalance problem caused by environment change. It makes its long lifespan and stable movement.
3. The unique contactless detection technology enable automatic position detection and debugging without adjusting position but only one time button pressing.
4. Home position lock control technology and initial position reset technology avoid accumulated error in movement and shock and shake when reach home position.
5. High integrated transmission, overcome shake problem during movement and reduce wear down to motor and wheel gear.
6. Mechanism’s installation by setover and hooping which avoid impact by stress from mechanism itself during movement, which makes the mechanism longer lifespan

Technical Parameters:
Working Power: AC220V, 150W
Arm (boom) Rising and dropping time: 3.75-6s (optional)
Working temperature: -20cels---+85cels
Arm (boom) length: 1-6m (optional)
Working Humidity: 5%-95%
Housing size: 340X310X1045mm
