Place of Origin: | China |
Brand Name: | Hongmen |
Certification: | CE |
Model Number: | SQMC |
Minimum Order Quantity: | L=4m * H=1.5m |
---|---|
Packaging Details: | Plywood + Iron Rack |
Delivery Time: | 10 Working Days |
Payment Terms: | TT With 50% Deposit, 50% Payable Upon Goods Dispatch |
Supply Ability: | 25,000m / month |
Material: | 6063-T5 Aluminium Alloy | Profiles Type: | Tubular |
---|---|---|---|
Surface Treatment: | Powder Coating | Product: | Automatic Security Gate |
Colour: | Customized Available | Motor: | 220 VAC / 36 VDC |
Operating: | Motorized | Control: | Wireless 433 MHz Remote |
High Light: | Automatic Retractable Gate,Sliding Folding Gate |

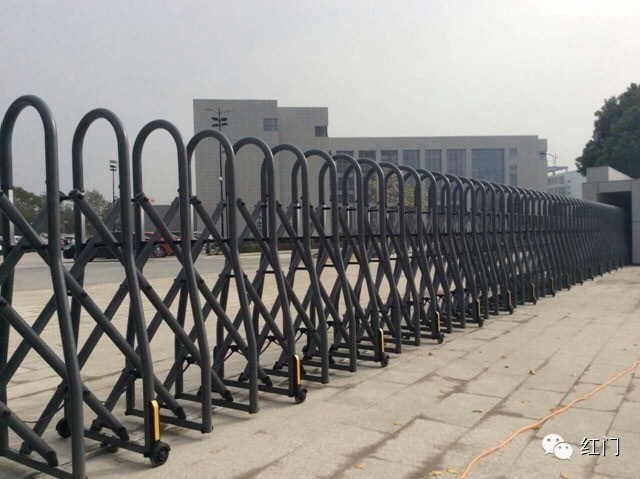

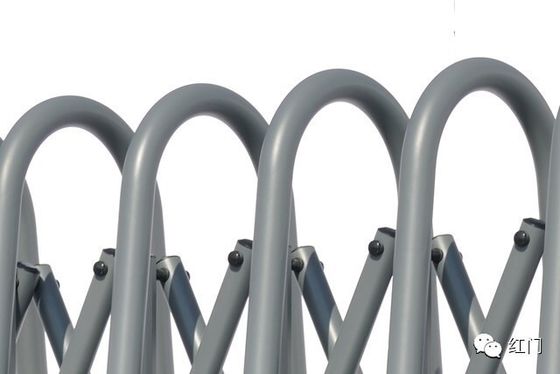

Industrial Retractable Automatic Security Gate Aluminium Alloy With Anti Climb Alarm
Features:
Technical Specification:
Operation Voltage | 220V± 10%, 50Hz-60Hz |
Operation Temperature | -25ºC to +70ºC |
Environment Humidity | < 90% |
Operation Speed | 16m/min |
Motor Power Rating | 250W |
Motor RPM | 1400r/min |
IP Rating | IP44 |
Insulation Grade | F |
Speed Reduction Ratio | 1000: 1 |
Remote Distance | 50m (empty space) |
Specifications:
Warranty:
1. Drive Motor is warranted against manufacturer’s defect for lifetime
2. Standard warranty for all components is valid for 12 months from the date of delivery
3. This warranty does not include damages caused by:
a. Wear and Tear
b. Theft
c. Accidents
d. Act of God & Natural Disaster
e. Unstable power supply (i.e. inconsistent voltage or lightning)
Disclaimer:
Hongmen Trading Co., Limited does not have any control of the final use of the goods supplied. We do not warrant the goods to be suitable for any other particular purpose. So far as statute permits and other express or implied term, condition or warranty, whether arising under statute or otherwise, as to fitness, suitability, quality condition, correspondence with description or sample or merchantability of the goods is hereby excluded from the contracted terms.
