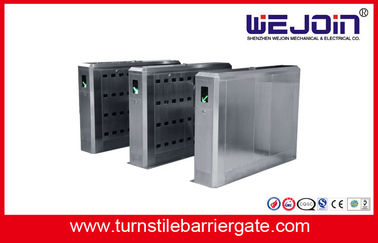

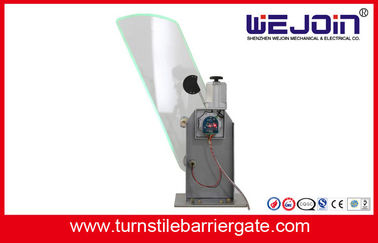

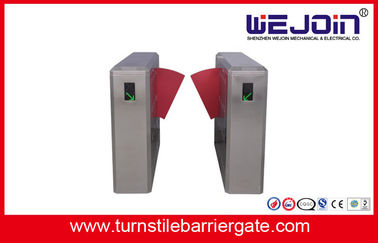

Name: Intelligent Flap Barrier Gate with Compact Electro-mechanical Design and Adjustable Auto-delay Closing Time
Brand: Shenzhen Turnstile Technology Co., Ltd.
SKU: WJTY201
Availability: InStock

Home Products Flap Barrier Gate

Intelligent Flap Barrier Gate with Compact Electro-mechanical Design and Adjustable Auto-delay Closing Time

Product Details:

Place of Origin:	China
Brand Name:	WEJOIN
Certification:	ISO,CE
Model Number:	WJTY201

Payment & Shipping Terms:

Minimum Order Quantity:	1unit
Price:	negotiation
Packaging Details:	Wooden box
Delivery Time:	10-30 days
Payment Terms:	T/T, Western Union
Supply Ability:	50PCS/week

Contact Now

Detailed Product Description

Wing:	Organic Glass	Motor:	DC12V
Function:	Anti-collision And Crashworthy	Advantage:	High Quality, Service & Factory Price
Operation:	Bi-direction	Usage:	M Etro Station, Office, Library,Hotel
Trade Terms::	EXW,CIF
Highlight:	half height turnstile

Intelligent Flap Barrier Gate with Compact Electromechanical Design and Adjustable Auto-delay Closing Time

Functions&Feature:

The whole system runs smoothly, long-life performance, high operation dependability, and fast response.
Alarm function, in case of illegal intrusion and reverse intrusion.
Infrared sensor to prevent pinch pedestrians.
Anti-breakthrough function. The gate is locked automatically until the opening signal received.
Anti-trailing function, the turnstile will lock if someone wants to burst in without swiping the RFID card.
LED indicator.
Automatic reset function. If the user fails to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.
When power off, the optical turnstile will open automatically, which is complying with fire safety requirements.

Products Series:

Model Item	WJTY201	WJTY301	WJTY311
Material of Housing	304 Stainless Steel
The material of Flap Door	Organic Glass, Resin, or PVC
Dimension of housing	12002701000	14503151020	14003051020
Thickness of housing	1.5mm
Max Width of Passage	600	900	900
Net weight	70kg	140 kg	85 kg
Normal Life Span	3 million times
Communication Interface	Standard RS485(distance less than 1200 meters)
Transit speed	30-40 persons/min
Power supply	220V±10%, 110± 10%
Frequency	50/60HZ
The working voltage of the motor	DC24V
Time for opening or closing	1s
Starting time after power on	3s, adjustable
Input interface	Dry contact signal or +12Vor pulse signal with width more than 100ms DC12V
Transit speed	25~32 persons/min
Working temperature	-10°C~50°C
Working environment	Indoor / Outdoor (Shelter)
Relative humidity	≤95%, no condensation
