Outdoor Smart Road Traffic Boom Barrier Gate Driveway Gates With Singer Bar

Outdoor Smart Road Traffic Boom Barrier Gate Driveway Gates With Singer Bar

  • Outdoor Smart Road Traffic Boom Barrier Gate Driveway Gates With Singer Bar
Outdoor Smart Road Traffic Boom Barrier Gate Driveway Gates With Singer Bar
Product Details:
Place of Origin: China
Brand Name: RS Security
Certification: ROHS, SGS, CE, FCC
Model Number: RS 603
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: Plywood
Delivery Time: 3~5 days
Payment Terms: Ex works
Supply Ability: 1000 PCS/month
Contact Now
Detailed Product Description
Length: 4.5 Meters Power: AC 220v 150 W
Housing Size: 340*232*1035mm Housing Color: Orange / Blue / Customized
Running Time: 6s Boom Type: Arm Boom Barrier
High Light:

boom barriers


electric driveway gates


parking barrier gate

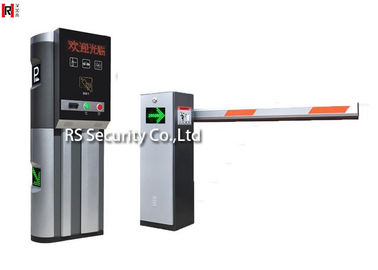

Outdoor Smart Road Traffic Boom Barrier Gate / Driveway gates with Singer Bar 3 - 6m
Product Name: Boom door &gate&barrier
Model: RS603
The raise and fall of bar can be controlled by remote control
Able to connect red and green lamps indicator ( optional)
Over-heat protection for
Able to connect infrared protection         (optional)
Able to connect loop detector             (optional)
Has tolling system interface              (optional)
Mechanism features:

  1. Gear motor drives barrier gate bar slow start grind to a halt, no- impact fast and steady movement, the operation range is limited within 90 degree for the bar, with zero accident. Quiet operation, noiseless, suitable for frequent raise and fall.
  2. Precise automatic tracking balancing mechanism makes static torque Zero for any position, which minimizes drive
  3. power and prolong service life.
  4. Barrier gate casing is made of advanced water-proof structure and anti-aging spray treatment, durable.

 Product Description
1. Barrier gate housing is cold-rolled steel plate, thickness of 2.0 MM, auto spray painting process;
2. 100W high-power pure copper motor, durable, strong power;
3. Motor with overheating protection could protect the motor avoid damage. When power off can also be manually operation to guarantee the vehicle pass in and out normally
4. Function of vehicle passing by the barrier arm automatically drop down, support external loop detector and internal loop detector.
5. Equipped with the infrared correlation Anti-hit device to prevent the barrier drop down hit the pedestrians and cause an accident;
6. Match loop detection protection device it can put an end to smash the car caused by error.
7. With delay barrier drop down function, time is adjustable.
8. Can connect to open, close, stop port (switch signal) wire control ,and remote control for customer optional.
9. With switch-off limit state output function equipped with parking management system can accurately locate the vehicle pass in and out.
10. Barrier arm diversification, standard length is 0~6 m optional, maximum is 9 m,( more than 6 m need to customize), barrier arm smoothly up and down, reliable, barrier go up and drop down just need 6 seconds.(standard is 6S, fast speed is 3S, high speed is 2S).
11. According to user demand equipped with traffic light control function;

Tech parameter

  1. Size: 380*250*1010(mm),55KG
  2. Work power: AC220V 150W
  3. Raise and fall time: 3-6s ( adjustable)
  4. Work temperature: 30degree below zero to 85 degree up zero
  5. Barrier gate bar length: 3-6 meter ( optional)
  6. Humidity:  5%~95%
  7. Casing type: customized available



304 stainless steel

Input voltage

220V AC220±10%, 150w



Barrier gate bar


Net weight


Work temperature

-30 to 85


24V DC brush


5 to 95%

Raise and fall time


Input interface

Relay signal, 12V level signal,



Work environment
