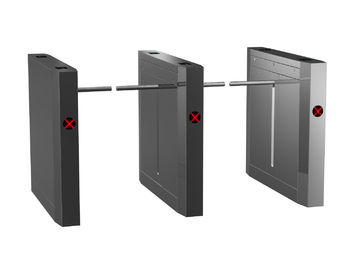

Single Or Dual Core Drop Arm Barrier Card Reader Turnstile Gate System







Quick Detail:



Normal close or normal open



when power on, pole lift automatically,



when power off, free passage



Brand Name:  RS Security



Drop Arm turnstile



Lane width: 600-1200mm



Size: 1200x165x990mm



Bi-directional access control







Description:



• The barrier arm turnstile is a perfect combination of aesthetic look and fast passage.



• Normal close or normal open can be switched.



• It provides standard or wide lane to meet different requirements for the lane width, the



lane width can be 600-1200mm





Turnstile Features



• Bidirectional control, by authorized card or biometric identifications, push button and so



on.



• Can be integrated with all kinds of access control systems,



• Flow direction guide with high bright led lamp



• Anti-punch, the barrier will not close if it detects people inside the passageway



• Anti-tailgating, it allows only one person to pass for an authorized card presented.



• Anti-panic, when power off, the barrier will open for people to go through.



• Normal close or normal open (for group pass)



• Close and open by remote control



• Card reading memory function, the user can set multiple time card reading passing or



single time card reading passing



• Failure detection and alarm functions;





Optional features



Counter:



Voice speech



Remote control





Applications:





Office building, factory, fitness club, prison, hotel lobby, school, port, exhibition hall.





Specification



Material	304 stainless steel	Input voltage	220V AC220±10%
Size	1200x165x990mm	Arm length	300-600mm
Net weight	102kg/unit	Clear passageway	600-1200mm
Motor	24V DC brush	Top Cover	Acrylic or stainless steel
Communication interface	RS485	Sensor beams	5 pairs for 1 complete lane
Transit speed	30-40 people/minute	Service life	3000,000 times
Close and open time	0.6S	Input interface	Relay signal, 12V level signal,
Clear passage width	600mm-1200mm	Work environment	Indoor and outdoor (shelter)
Number of led lamp	3pcs	Model	RS1008





Competitive Advantage:



• We are a leading manufacturer of turnstile and speed gate in China.



• We focus on pedestrian turnstile gates.



• We keep stock for regular products and we can support small orders. Usually, our lead



time is just 3 days.



• Design products according to customers’ requirements.



• Credibility: We are SGS certificated Supplier. Our customers are located over 50



countries



• Gratitude: We cherish the business chance you give us and return you with quality



products and good service.



• Professional: We have been in this business for more than 8 years. We have a strong



professional team with various experiences.



• We keep doing new product development. Our goal is to enhance our competitive

capacity constantly.



• Price: very competitive price and good quality products



• Quality: we do 100% inspection before the shipment.



• Promise: we are always ready to take the responsibility if any loss caused to our



customer due to our mistakes.
