Entrance Turnstiles

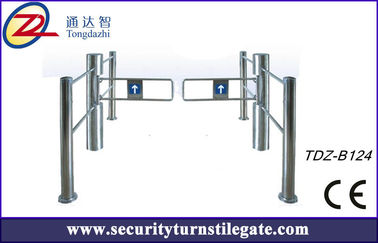

Bi - directional auto Supermarket Turnstile swing barrier gate with Standard configuration

Specifications:

1. Power Supply: AC220V±10V ,50Hz
2. Power Consumption: 50W
3. Temperature: -10 to 50 degrees
4. Humidity: <90%,  without concretion
5. Passage Width: <=1200mm
6. Passing Speed: 40 persons/min (normal open), 30 persons/min (normal close)
7. Arm Open/Close Time: 2s
8. Input Interface:  +12V electrical signal or impulse signal with width more than 100ms, drive current >10mA
9. Communication Interface: RS485 (Distance: <=1200m)
10. Material: Housing - 304 stainless steel
                   Arm - stainless steel
11. Dimension: Φ168*1050mm
      Arm Length: <=800mm
      Factory Default Arm Length: 600mm
12. Weight: 70kgs
13. Working Environment: Indoors or outdoors with shed
14. Arm Turning: Single direction or Bi-direction
