Shenzhen Turnstile Technology Co., Ltd.
High quality, Best service,Reasonable price.
 |
| Place of Origin: | China |
| Brand Name: | Hongmen |
| Certification: | CE |
| Model Number: | P863B |
| Minimum Order Quantity: | L=3m * H=1.5m |
|---|---|
| Packaging Details: | Iron rack plus plywood |
| Delivery Time: | 10 Working Days |
| Payment Terms: | T/T |
| Supply Ability: | 30.00m/month |
| High Light: | Motorized Sliding Gate,Auto Sliding Gates |
||
|---|---|---|---|

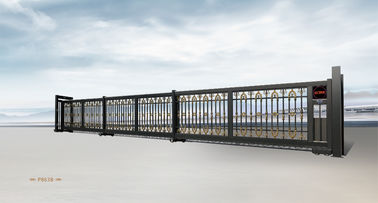

Electric Telescopic Automatic Cantilever Sliding Gates For Residential
Features:
1.CE Certified.
2.Smart Power Outage Clutch.
3.Trackless Operation.
4.Industrial Grade Aluminium Alloy (6063-T5).
5.Wireless Remote Control (433MHz).
6.Powder Coating
7.Dispatch In Modules Form (Transportation Friendly).
8.EMO Button (Emergency Stop Button).
9.Anti- Collision IR Sensor.
10.Anti- Climb Photo Cell.
Specifications:
Material Specification:
| Description | Material | Hardness (HW) | Specification (mm) |
| Upper Beam | 6005-T5 | 13-17 | 115*80*d3 |
| Lower Beam | 6003-T5 | 10-17 | 135*80*d3-4 |
| Front Gate Frame A/ Rear Gate Frame | 6003-T5 | 10-13 | 110*80*d2.0 |
| Front Gate Frame B | 6003-T5 | 10-13 | 80*80*d2.5 |
| Cross Tube | 6003-T5 | 10-13 | 35*29*d1.0 |
| Auxillary Gate Frame | 6003-T5 | 10-13 | 70*25*d1.0 |
| Supportive Bar | SUS304 | 10-13 | 42*44*d2.0 |
| Front/Rear Upright Post | 6003-T5 | 10-13 | 180*100*d3.0 |
| Rail | 6003-T5 | 10-13 | 25*18 |
Technical Specification:
| Operation Voltage | 220V± 10%, 50Hz-60Hz |
| Operation Temperature | -25ºC to +70ºC |
| Environment Humidity | < 90% |
| Operation Speed | 18m/min |
| Motor Power Rating | 500W |
| Motor RPM | 1400r/min |
| IP Rating | IP54 |
| Insulation Grade | F |
| Speed Reduction Ratio | 30: 1 |
| Remote Distance | 50m (empty space) |
