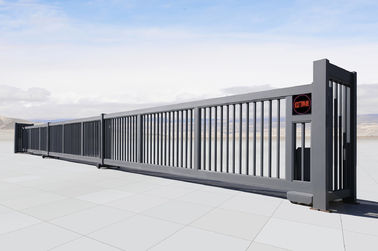

Name: Aluminium Alloy Telescopic Sliding Gate
Brand: Shenzhen Turnstile Technology Co., Ltd.
SKU: P863
Availability: InStock

Home Products Telescopic Sliding Gate

Aluminium Alloy Telescopic Sliding Gate

Product Details:

Place of Origin:	China
Brand Name:	Hongmen
Certification:	CE
Model Number:	P863

Payment & Shipping Terms:

Minimum Order Quantity:	L=3m * H=1.5m
Packaging Details:	Iron rack plus plywood
Delivery Time:	10 Working Days
Payment Terms:	T/T
Supply Ability:	30.00m/month

Contact Now

Detailed Product Description

Highlight:	Motorized Sliding Gate

Aluminium Alloy Telescopic Sliding Gate , Automatic Telescopic Sliding Door With Trackless

Operation

Features:

1.CE Certified.
2. Powder Coating.
3.EMO Button (Emergency Stop Button).
4.Industrial Grade Aluminium Alloy (6063-T5).
5.Wireless Remote Control (433MHz).
6.Trackless Operati.
7.Smart Power Outage Clutch.
8.Anti- Collision IR Sensor.
9.Anti- Climb Photo Cell.
10. Dispatch In Modules Form (Transportation Friendly).

Specifications:
Aluminium Alloy Telescopic Sliding Gate 0

Material Specification:

Description	Material	Hardness (HW)	Specification (mm)
Upper Beam	6005-T5	13-17	11580d3
Lower Beam	6003-T5	10-17	13580d3-4
Front Gate Frame A/ Rear Gate Frame	6003-T5	10-13	11080d2.0
Front Gate Frame B	6003-T5	10-13	8080d2.5
Cross Tube	6003-T5	10-13	3529d1.0
Auxillary Gate Frame	6003-T5	10-13	7025d1.0
Supportive Bar	SUS304	10-13	4244d2.0
Front/Rear Upright Post	6003-T5	10-13	180100d3.0
Rail	6003-T5	10-13	25*18

Technical Specification:

Operation Voltage	220V± 10%, 50Hz-60Hz
Operation Temperature	-25ºC to +70ºC
Environment Humidity	< 90%
Operation Speed	18m/min
Motor Power Rating	500W
Motor RPM	1400r/min
IP Rating	IP54
Insulation Grade	F
Speed Reduction Ratio	30: 1
Remote Distance	50m (empty space)
