Classical Aluminium Alloy Folding Telescopic Sliding Gate With Remote Control

Classical Aluminium Alloy Folding Telescopic Sliding Gate With Remote Control

  • Classical Aluminium Alloy Folding Telescopic Sliding Gate With Remote Control
  • Classical Aluminium Alloy Folding Telescopic Sliding Gate With Remote Control
Classical Aluminium Alloy Folding Telescopic Sliding Gate With Remote Control
Product Details:
Place of Origin: China
Brand Name: Hongmen
Certification: CE
Model Number: HSG61B
Payment & Shipping Terms:
Minimum Order Quantity: L=5m * H=1.5m
Price: USD350 - USD660 / Meter
Packaging Details: Iron rack plus plywood
Delivery Time: 10 Working Days
Payment Terms: T/T
Supply Ability: 10.00m/month
Contact Now
Detailed Product Description
Material: Industrial Grade Aluminium Alloy Colour: Grey / Black / Silver / White / Others
Surface Treatment: Powder Coated Motor: 500W
Voltage: 220VAC (DC Available) Operation: Telescopic Sliding
Length: Up To 30m Height: Up To 2.0m
High Light:

Automated Sliding Gates

,

Auto Sliding Gates

Remote Control Telescopic Sliding Gate Classical Aluminium Alloy Folding





HSG61B


Features:

     1. CE Certified.
     2. EMO Button (Emergency Stop Button).
     3. Trackless Operation.
     4. Industrial Grade Aluminium Alloy (6063-T5).
     5. Wireless Remote Control (433MHz).
     6. Powder Coating
     7. Dispatch In Modules Form (Transportation Friendly).
     8. Smart Power Outage Clutch.
     9. Anti- Collision IR Sensor.
     10. Anti- Climb Photo Cell.

     11.  Folded Design - Maximise the Opening Spaces

     12.  Suitable For:

                    a. Factory Entrance

                    b. Bungalow main-gate

                    c. Private Residential Area

                    d. Condominium Entrance

                    e. Garrage entrance

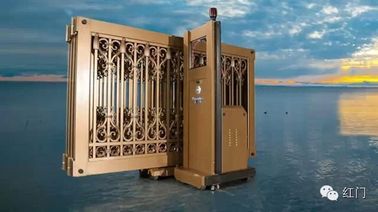

Classical Aluminium Alloy Folding Telescopic Sliding Gate With Remote Control 0

Specifications:
Classical Aluminium Alloy Folding Telescopic Sliding Gate With Remote Control 1

Material Specification:

Description Material Hardness (HW) Specification (mm)
Upper Beam 6005-T5 13-17 115*80*d3
Lower Beam 6003-T5 10-17 135*80*d3-4
Front Gate Frame A/ Rear Gate Frame 6003-T5 10-13 110*80*d2.0
Front Gate Frame B 6003-T5 10-13 80*80*d2.5
Cross Tube 6003-T5 10-13 35*29*d1.0
Auxillary Gate Frame 6003-T5 10-13 70*25*d1.0
Supportive Bar SUS304 10-13 42*44*d2.0
Front/Rear Upright Post 6003-T5 10-13 180*100*d3.0
Rail 6003-T5 10-13 25*18



Technical Specification:

Operation Voltage 220V± 10%, 50Hz-60Hz
Operation Temperature -25ºC to +70ºC
Environment Humidity < 90%
Operation Speed 18m/min
Motor Power Rating 500W
Motor RPM 1400r/min
IP Rating IP54
Insulation Grade F
Speed Reduction Ratio 30: 1
Remote Distance 50m (empty space)



Q: How do you ship it out to worldwide customers?

A: We take all necessary precaution before its dispatch from the factory. The most inner layer is wrapping up with a thin layer of shrink wrap, then follow by a customized EPE form to firmly secure its position within the carton box.



Q: Do you take any additional precaution if we only purchase a few sets whereby we going to ship it via LCL?

A: Yes, we will place 4 sets of the well-packed crowd control barriers on upright position and sitting firmly on top of a plywood pallet.



Q: Do you go through the fumigation process before exporting the goods?

A: Due to the facts that all packaging are non-timber material, and same goes to the pallet is made of plywood which we don’t have to worry about fumigation certifications



Q: Do you have any export experience?

A: Yes, our company have more than 16 years of experience of exporting such innovative and unique products to all over the world

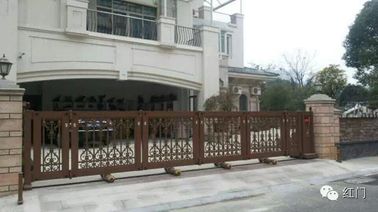

Classical Aluminium Alloy Folding Telescopic Sliding Gate With Remote Control 2



Classical Aluminium Alloy Folding Telescopic Sliding Gate With Remote Control 3



Classical Aluminium Alloy Folding Telescopic Sliding Gate With Remote Control 4
