tripod turnstile mechanism

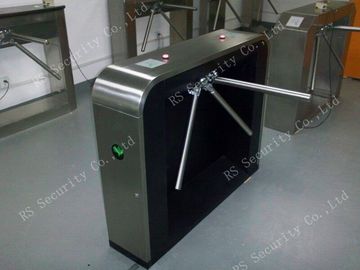

Luxury Black Security Tripod Turnstile Gate Civilized And Orderly Access





Quick Detail:





Brand Name:       RS Security



Model Number:   RS 418



Application: tourist places, fitness club,  hotel lobby, school, restaurant,



Material:       304 stainless steel



Size:      1200x2800x980mm



Bi-directional access control





Description:



The 3 arms can rotate in one or two directions, controlled by an access control system or push



button at a reception desk school, it prevents unauthorized people to enter the restricted areas,



The electromagnet unlock when a valid signal is given to the motherboard, it allows authorizer to go



through the passageway.



Simple installation and economic model





Features



Full Automatic Type



1 .Compatibility: Being compatible with several control devices IC . ID. magcard. barcode,



fingerprint etc.


2 Auto-drop-arm function: the middle arm will drop automatically(default) or free passing(optional)



when power is off.


3Auto-lift-arm function :the middle arm can also lift automatically with alert when the power is on.


4. Automatic-rotation function: when an open signal is given, the arms will rotate automatically.


5. Anti-reverse-rotation function: reverse rotation will be forbidden once the arms have moved to



pre-set degree from home.


6. Emergency-escape function: the middle arm will automatically drop by pressing the emergency



button winch can be remote controlled whether the power is on or not

Semi Automatic Type


1 Being compatible with several control devices IC . ID. magcard. barcode, fingerprint etc.


2.Automatically reset function: It will automatically lock if the pedestrian hasn't pass through the



channel in the pre-set tune after the opening. The passing tune is adjustable.


3 Auto-drop-arm function: the middle arm will drop automatically(default) or free passing(optional)



when power is off.


4.Emergency-escape function: the middle arm will automatically drop by pressing the emergency



button which can be remote controlled whether the power is on or not


5.Several working modes are optional, namely two-direction card reading for limiting flow



capacities, or. one passage works while another is set to forbid passing. or. one passage normally



operates while another is free to pass

Manual Type



1 The arms can only rotate by single direction, but the direction can be changed easily inside


2. The structure has no electric devices.


3. No maintenance. suitable for single-direction crowd control





Applications:



High security places, factory, fitness club, prison, hotel lobby, school, port, exhibition hall.





Traffic type







Specification





Material	304 stainless steel	Input voltage	220V AC220±10%
Size	1200x280x980mm	Are length	510mm
Net weight	50kg/unit	Arm diameter	38mm
Motor	24V DC brush	Cooler fan	Optional
Communication   interface	RS485	Thermostat	Optional
Transit speed	30-40 people/minute	Service life	5000,000 times
Close and open time	0.6S	Input interface	Relay signal, 12V level   signal,
Clear passage width	550mm	Work environment	Indoor and outdoor   (shelter)
Number of led lamp	1pcs





Our advantage:



We are a leading manufacturer of turnstile and speed gate in China.



We focus on pedestrian turnstile gates.



We keep stock for regular products and we can support small orders. Usually, our lead time is just



3 days.



Design products according to customers’ requirements.



Credibility: We are SGS certificated Supplier. Our customers are located over 50 countries



Gratitude: We cherish the business chance you give us and return you with quality products and



good service.



Professional: We have been in this business for more than 8 years. We have a strong professional



team with various experiences.



We keep doing new product development. Our goal is to enhance our competitive capacity



constantly.



Price: very competitive price and good quality products



Quality: we do 100% inspection before the shipment.



Promise: we are always ready to take the responsibility if any loss caused to our customer due to



our mistakes.
