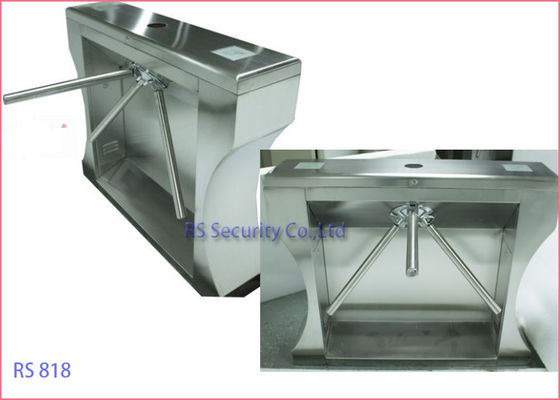

Input And Output Interfaces Tripod Turnstile Gate Club Ferry Turnstile

Input And Output Interfaces Tripod Turnstile Gate Club Ferry Turnstile

  • Input And Output Interfaces Tripod Turnstile Gate Club Ferry Turnstile
  • Input And Output Interfaces Tripod Turnstile Gate Club Ferry Turnstile
Input And Output Interfaces Tripod Turnstile Gate Club Ferry Turnstile
Product Details:
Place of Origin: China(mainland)
Brand Name: RS Security
Certification: ISO,FCC,SGS,RoHS,CE
Model Number: RS 318
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: 1200USD
Packaging Details: wooden box
Delivery Time: 3-8workdays
Payment Terms: TT
Supply Ability: 3000pcs/month
Contact Now
Detailed Product Description
Series: Tripod Turnstile Product Name: Bridge Butterfly Tripod Turnstile
Modal: RS 318 Brand: RS Security
Material: 304 Stainless Steel Size: 1200*300*980mm
High Light:

tripod turnstile mechanism

,

automatic systems turnstiles



Input And Output Interfaces Tripod Turnstile Gate Club Ferry Turnstile​





Product name : waist height turnstile

Specifications

1,Security turnstile gate
,2, IC/ID/barcode control
3,RS485 Standard Interface
4,Fully Automatic
5,304 stainless steel





Description:



  • The 3 arms can rotate in one or two directions, controlled by an access control system or push button at a reception desk school, it prevents unauthorized people to enter the restricted areas,
  • The electromagnet unlock when a valid signal is given to the motherboard, it allows authorizer to go through the passageway.
  • simple installation and economic model





Features



  • Bidirectional control, by authorized card or biometric identifications, push button and so on
  • Can be integrated with all kinds of access control systems,
  • Flow direction guide with high bright led lamp
  • when power off, the arm drop down for free exit or free entrance
  • when power on, arm raised up by human force
  • open and close by remote control
  • Card reading memory function, the user can set multiple time card reading passing or single time card reading passing
  • Failure detection and alarm functions;





Optional features



Counter:

Voice speech

Remote control


Specifications Controller

Full auto tripod turnstile
A.Compatible for IC, ID, magentic card, barcode card and ESD and so on.
B.Smooth running for arm, low noise.
C.Arm drops down automatically when emergencies happen. arm goes up automatically when power on.
D.Control panel has counting function, LED display ( optional).
E.Control panel has memory function.
F.With standard input and output interface, best choice for system integrator.
Semi-auto tripod turnstile
A.Compatible for IC, ID, magentic card, barcode card and ESD and so on.
B.Smooth running for arm, low noise
C.Arm drops down automatically when emergencies happen. arm goes up by manual operation when power on.
D.Control panel has counting function, LED display ( optional)
E.Control panel has memory function
F.With standard input and output interface, best choice for system integrator
Manual operation tripod turnstile
A.Specific system of positioning and resetting: the unit can make any arm in the horizontal level.
B.Unit is pure mechanical product without electric control system, and is also simply in configuration and high in reliability.
C.Zero maitenance, suitable for one-direction flow control





Applications:

High security places, factory, fitness club, prison, hotel lobby, school, port, exhibition hall.





Traffic type



Input And Output Interfaces Tripod Turnstile Gate Club Ferry Turnstile 0Input And Output Interfaces Tripod Turnstile Gate Club Ferry Turnstile 1Input And Output Interfaces Tripod Turnstile Gate Club Ferry Turnstile 2





Specification



Material

304 stainless steel

Input voltage

220V AC220±10%

Size

1200x280x980mm

Are length

510mm

Net weight

50kg/unit

Arm diameter

38mm

Motor

24V DC brush

Cooler fan

Optional

Communication interface

RS485

Thermostat

Optional

Transit speed

30-40 people/minute

Service life

5000,000 times

Close and open time

0.6S

Input interface

Relay signal, 12V level signal,

Clear passage width

550mm

Work environment

Indoor and outdoor (shelter)

Number of led lamp

1pcs



RS 318





Competitive Advantage:



Our advantage:



  • We are a leading manufacturer of turnstile and speed gate in China.
  • We focus on pedestrian turnstile gates.
  • We keep stock for regular products and we can support small orders. Usually, our lead time is just 3 days.
  • Design products according to customers’ requirements.
  • Credibility: We are SGS certificated Supplier. Our customers are located over 50 countries
  • Gratitude: We cherish the business chance you give us and return you with quality products and good service.
  • Professional: We have been in this business for more than 8 years. We have a strong professional team with various experiences.
  • We keep doing new product development. Our goal is to enhance our competitive capacity constantly.
  • Price: very competitive price and good quality products
  • Quality: we do 100% inspection before the shipment.
  • Promise: we are always ready to take the responsibility if any loss caused to our customer due to our mistakes.
  •
