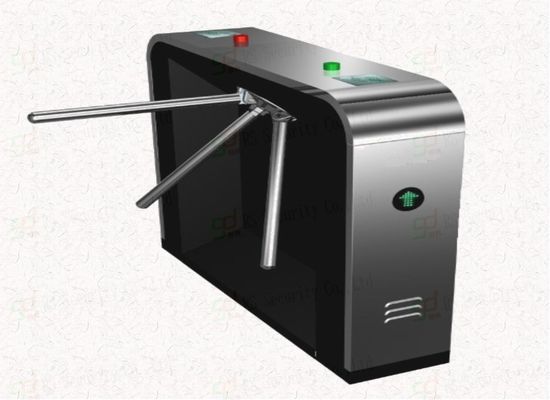

Automatic Arm Drop Tripod Turnstile Gate Bidirectional Swimming Hall Access



Automatic Tripod Turnstile Gate Bidirectional Arm Drop Barrier Swimming Hall Access







Product name : waist height turnstile



Features



Bidirectional control, by authorized card or biometric identifications, push button and so on



Can be integrated with all kinds of access control systems,



Flow direction guide with high bright led lamp



when power off, the arm drop down for free exit or free entrance



when power on, arm raised up by human force



open and close by remote control



Card reading memory function, the user can set multiple time card reading passing or single time card



reading passing



Failure detection and alarm functions;





Optional features



Counter:



Voice speech



Remote control





Description:



The 3 arms can rotate in one or two directions, controlled by an access control system or push button at



a reception desk school, it prevents unauthorized people to enter the restricted areas,



The electromagnet unlock when a valid signal is given to the motherboard, it allows authorizer to go



through the passageway.



simple installation and economic model







Traffic type







Specification



Material	304 stainless steel	Input voltage	220V AC220±10%
Size	1200x280x980mm	Are length	510mm
Net weight	50kg/unit	Arm diameter	38mm
Motor	24V DC brush	Cooler fan	Optional
Communication   interface	RS485	Thermostat	Optional
Transit speed	30-40 people/minute	Service life	5000,000 times
Close and open time	0.6S	Input interface	Relay signal, 12V level signal,
Clear passage width	550mm	Work environment	Indoor and outdoor (shelter)
Number of led lamp	1pcs		RS 218





Competitive Advantage:





We are a leading manufacturer of turnstile and speed gate in China.



We focus on pedestrian turnstile gates.



We keep stock for regular products and we can support small orders. Usually, our lead time is just 3



days.



Design products according to customers’ requirements.



Credibility: We are SGS certificated Supplier. Our customers are located over 50 countries



Gratitude: We cherish the business chance you give us and return you with quality products and good



service.



Professional: We have been in this business for more than 8 years. We have a strong professional team



with various experiences.



We keep doing new product development. Our goal is to enhance our competitive capacity constantly.



Price: very competitive price and good quality products



Quality: we do 100% inspection before the shipment.



Promise: we are always ready to take the responsibility if any loss caused to our customer due to our



mistakes.
