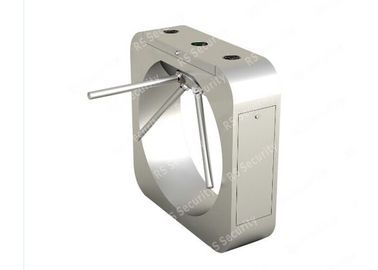

Intelligent Tripod Turnstile Gate Pedestrian Turnstile Channels Entance
Specifications
Bridge Type Arc Tripod Turnstile:
suitable for access control, time attendance, consumption, and park ticket manage
RS 118 Box Type Arc Tripod Turnstile
Dimension: L120cm x W28cm x H98cm
Length of each pole: 51cm
Net weight: 70kg
Support force of gate pole:80Kg
The arm will unlock when a valid signal is received
Control mode: two-ways drive, human & electric control
Transit speed: 20-30 persons per minute
Work environment: Indoor/outdoor Temperature: 10 below degree to 50 degree
Turnstile Function:
1. Single/double walkway---controlled in one direction or both
2. A valid lock action can allow one passage at one time
3. Normally open---the machine will unlock when a valid signal is received
4. It will lock automatically if passage through turnstile is not completed within pre-set time, the set
time can be adjusted via parameter change
Emergency configuration: The tripod will drop automatically by power off or by hand to provide a clear
walkway for escape in the event of an emergency
Interface: One standard port-RS485
Control panel with count and LED digital function
Traffic-light: A Red Cross symbol will illuminate to indicate the unit is not available for pass, and a green
arrow indicate the direction of allowable passing
Applications:
Station/exhibition/airport/subway/government/market and so on
|
No1.
|
parameters
|
values
|
|
1
|
product name
|
oem turnstile
|
|
2
|
model
|
RS 518
|
|
3
|
Material
|
304 stainless steel
|
|
4
|
work voltage
|
AC220V±10% 50HZ±10%
|
|
5
|
Core
|
DC24V solenoid valve
|
|
6
|
Size
|
1200*280*980mm
|
|
7
|
Arm length
|
500mm
|
|
8
|
Max bearing force
|
80KG
|
|
9
|
Max lane width
|
550MM
|
|
10
|
Rotation direction for arm
|
left or right, or bi-directional
|
|
11
|
Card reading window
|
standard or customized
|
|
12
|
Work environment
|
indoor or outdoor, 10°C~70°C , relative humidity::≤90%, no
condensation
|
|
13
|
Barrier open time
|
0.2s
|
|
14
|
Transit speed
|
30 people/minute
|
|
15
|
Emergency
|
auto drop for arm
|
|
16
|
Normal work life
|
3,000,000 times
|
|
17
|
Communication interface
|
RS 485, distance ≤1200m
|
|
18
|
Input interface
|
relay switch signal, 12V level signal or 12V pulse signal, puls
width>100ms,drive current >10Ma
|
