Shenzhen Turnstile Technology Co., Ltd.
High quality, Best service,Reasonable price.
 |
| Place of Origin: | China(mainland) |
| Brand Name: | RS Security |
| Certification: | ISO,FCC,SGS,RoHS,CE |
| Model Number: | RS 718 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | 0 |
| Packaging Details: | wooden box |
| Delivery Time: | 3-8workdays |
| Payment Terms: | TT |
| Supply Ability: | 3000pcs/month |
| Series: | Tripod Turnstile | Product Name: | Bridge Circular Tripod Turnstile |
|---|---|---|---|
| Modal: | RS 718 | Brand: | RS Security |
| Material: | 304 Stainless Steel | Size: | 1200*280*980mm |
| High Light: | tripod turnstile mechanism,automatic systems turnstiles |
||
Product Name:Waist Height Turnstile
Model:RS 718
Size:1200*280*980mm
Specifications:
Factory Price Tripod Turnstile
1.MOQ:1 piece
2.turnstile manufacturer,factory price
3.OEM welcome
Automatic turnstile gate made of 304 stainless steel from China manufacture
Main Features&Function:
1. Available in single walkway or bi-directional passage.Both directions can be set as controlled mode or free mode.
2.Self-recovery function:the machine will recovery automatically with invalid counting if passage is not completed within pre-set time(5 seconds default,adjustable by software).
3.Multi-alarm function:When arms are pushed by force illegally,alarm will be triggered automatically and the center rotor will be set locked(the duration of the alarm and lock is adjustable by software).
4.Automatic-rotation function:once an open signal is given,the center rotor will rotate automatically.
5.Anti-reverse-rotation function:reverse rotation will be forbidden once the arms have moved to pre-set degree from home(adjustable by software).
6. Emergency escape function:the obstacles will open automatically by pressing the emergency button which can be remote-controlled whether the power is on or not.
7.Smart card reader compatible with a variety of card such as IC and ID card.
8.Can be expanded to automatic identification system,realizing function to access control,
pedestrian flow control,attendance check or fare collection.
9.Equipped with international standard electrical interface,can be easily integrated with other R/W device,also can be controlled and management through remote supervision computer.
10.Control panel with count and LED digital function.
11.Optional traffic-light: A Red Cross symbol will illuminate to indicate unit is not available for pass, and a green arrow indicate the direction of allowable pass.

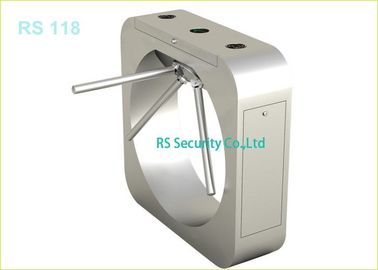

Turnstile RS 118 Specification:
| No. | parameters | values |
| 1 | product name | oem turnstile |
| 2 | model | RS 118 |
| 3 | Material | 304 stainless steel |
| 4 | work voltage | AC220V±10% 50HZ±10% |
| 5 | Core | DC24V solenoid valve |
| 6 | Size | 1200*280*980mm |
| 7 | Arm length | 500mm |
| 8 | Max bearing force | 80KG |
| 9 | Max lane width | 550MM |
| 10 | Rotation direction for arm | left or right, or bi-directional |
| 11 | Card reading window | standard or customized |
| 12 | Work environment | indoor or outdoor, 10°C~70°C , relative humidity::≤90%, no condensation |
| 13 | Barrier open time | 0.2s |
| 14 | Transit speed | 30 people/minute |
| 15 | Emergency | auto drop for arm |
| 16 | Normal work life | 3,000,000 times |
| 17 | Communication interface | RS 485, distance ≤1200m |
| 18 | Input interface |
relay switch signal, 12V level signal or 12V pulse signal, pulse width>100ms,drive current >10Ma |
Advantages:
. Serious Security
. Mechanical locking against infractions for increased security and greater turnstile durability
. Compact turnstile with arms that do not encroach the walkway
. Durable & Reliable
. Covers and outer side panels made from superior-quality stainless steel for exceptional durability
. Sturdy, corrosion-resistant and heavy-duty mechanism for extended service life
. Ergonomics & User Protection
. Adjustable-pressure hydraulic shock absorbers for silent, smooth rotation and a progressive slowing down of the arm rotation
. Orientation pictograms to facilitate throughput
. Easy Installation
. Front and rear sections specially designed to integrate the selected access control system
. Many configurations covering all possible pedestrian access control scenarios
