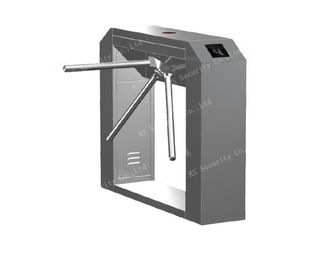

Seucurity Waterproof Pedestian Waist Height Turnstile Barrier Gate Outdoor

Product Details:

Place of Origin:	China(mainland)
Brand Name:	RS Security
Certification:	ISO,FCC,SGS,RoHS,CE
Model Number:	RS918

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	1200USD
Packaging Details:	wooden box
Delivery Time:	3-8workdays
Payment Terms:	TT
Supply Ability:	3000pcs/month

Contact Now

Detailed Product Description

Series:	Tripod Turnstile	Product Name:	Intelligent Bevel Tripod Turnstile
Model:	RS 918	Brand:	RS Security
Material:	304 Stainless Steel	Size:	1200280980mm
High Light:	automatic systems turnstiles , turnstile gate systems

Keywords:2015automatic barrier gate with single bar,ac motor sliding gate controller,automatic boom barrier,access control system glass door,automatic gateaccess control tripod turnstile,automatic gate barrier,access control turnstile,automatic parking gate barrieraccessories,automatic sliding gate
2015automatic boom barrier,ac motor sliding gate controller,automatic gate,access control system glass door,automatic gate barrieraccess control tripod turnstile,automatic parking gate barrier,access control turnstile,automatic sliding gate accessories,automatic swing gate motor

Seucurity Access Control Pedestian Waist Height Barrier Gate outdoor

Specifications

Product Name:Waist Height Turnstie

Model:RS 918

1. waterproof 304 stainless steel tripod turnstile/ barrier gate
2. stable quality
3. well-protective package
4. support OE

5.anti-static

auto turnstile,tripod turnstile,waist height turnstile,barrier gate,time attendance

Technical Parameters
Frame construction	304 grade stainless steel (1.5mm thickness for top panel; 1.2mm thickness for the frame)
Dimension	1200980280mm
Arm length	510mm
Maximum force of the arm	80Kg
Driving force of the arm	3kg
Voltage	AC220±10% V,50HZ
Frenquency	50/60Hz
Communication interface	RS485/ TCP/IP
Input interface	dry contact signal or +12V level signal or DV 12V pulse signal of pulse width ≥100ms; drive current ≥10mA
Normal life-span	3 million
Passing speed	30 persons/min
Working environment	Indoor/outdoor
Working temperature	-10°C ~ 70°C
Relative humidity	≤90% no condensation

Main Features:

1) Applying electromagnet locking and photoelectric unlocking, this can make sure the products with longer service life of products, stability and fast reaction speed.

2) The whole system works steadily, and the noise is very low, small impact force.

3) It has self checking for electricity, recover to lock condition automatically.

4) There are many working modes for choice, it can read card for both sides, and can read by one side, the other side is forbidden to access; read card by one side, the other side freely access.

5) The poles will fall down when the power is cut off. When power is on, press the pole and take it up to level line.

6) It can control open by RS485 in long distance, fall down the pole without power, to meet users’ special requirement and security needs.

7) It has standard outside electronic interface, can connect with many kinds of read/write equipment, fit for system integration, and can realize to remote control and manage through computer.

8) It can count the people for access automatically, and can show by LED ( optional) to manager.

9) It has direct access direction function by LED display, to show can access or forbid to access.

10) It can make a limit for the quantity of people inside through the software.

11) Resetting automatically: the passenger read effectively, the system will cancel this access authority if they will not access within setting time (5 seconds).

Our services

1. One year warranty; life-time professional technical supports
2. Support customized turnstile gates or OEM
3. One-stop access control/ security solution provider, can help you save time and costs
4. Good quality with competitive price
5. Fast delivery, well-protective package and safe shipping way
