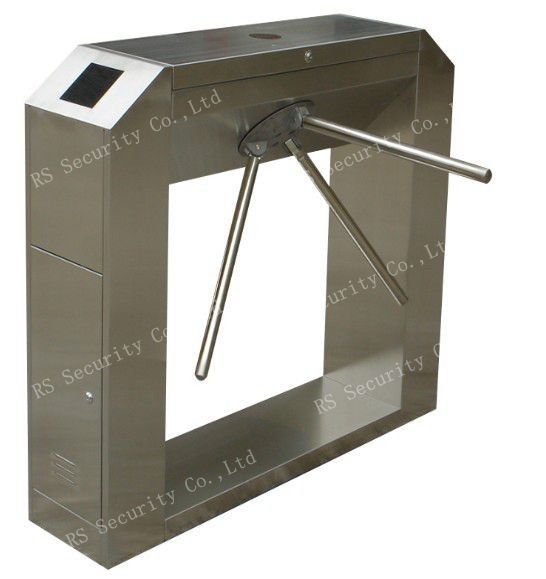

Semi-Auto Rfid Smart waist high turnstile With gymnasium , barrier gate
Product Name; Waist Height Turnstile
Model:RS 318
Semi-auto 304 stainless steel rfid Smart Tripod Turnstile with access control system
Material: 304 stainless steel / spray
access control,time attendance,parking system,tripod turnstile,barrier gate
l The 3 arms can rotate in one or two directions, controlled by an access control system or push button at a reception desk school, it prevents unauthorized people to enter the restricted areas,
l The electromagnet unlock when a valid signal is given to the motherboard, it allows authorizer to go through the passageway.
l simple installation and economic model
Specification:
| Passage Width |
≤600mm, Max. 45 passengers/min |
| External Dimension |
1200x280x980mm |
| Voltage |
AC85-265V, 50HZ |
| Motor |
0.5N•M/24V DC |
| Input |
Dry Contact |
| Communication Interface |
Standard RS485 |
| Communication Range |
≤1200M |
| Working Environment Temperature |
-10°C - +70°C, Indoor and Outdoor use IP54 Specification |
| Noise level |
< 55dBA |
| Relative Humidity |
< 95%, without dew |
Features:
l Bidirectional control, by authorized card or biometric identifications, push button and so on
l Can be integrated with all kinds of access control systems,
l Flow direction guide with high bright led lamp
l when power off, the arm drop down for free exit or free entrance
l when power on, arm raised up by human force
l open and close by remote control
l Card reading memory function, the user can set multiple time card reading passing or single time card reading passing
l Failure detection and alarm functions;
Extended:
1. Faults self-detection and fire alarm drop arm interface
2. Different working status realized by different mechanical structure for option
- one way by card reading/one way no entry
- double ways by card reading
- one way card reading/one way freely (w/ or w/o pushing button)
- double ways freely (w/ or w/o pushing button)
3. With standard RS485 communication interface 11. With LED direction indication 12. Systems automatically reposition if passenger does not pass in regulated time, default setting 10s with memory function for card reading 13. Passed 3,000,000 continuous test without failure 14. Tripod turnstiles can be eaily inferface with:
- Biometric Integration
- Card Readers
- Coin/token Acceptors
- Computer Attendance Systems / Ticket Scanners
- Electronic / LCD Counters
- Push-Button and Wireless Remotes
Application:
Subway Station, Hoverport,Tourism Sports,Exhibition, Swimming Hall,Residence Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Charge Management,Special Access Control
