Name: Security Automatic Tripod Waist Height Turnstiles Bi-direction Pass
Brand: RS Security
SKU: RS 218
Price: 1200 USD
Availability: InStock
Rating: 4.8 (165 reviews)

Home Products Waist Height Turnstiles

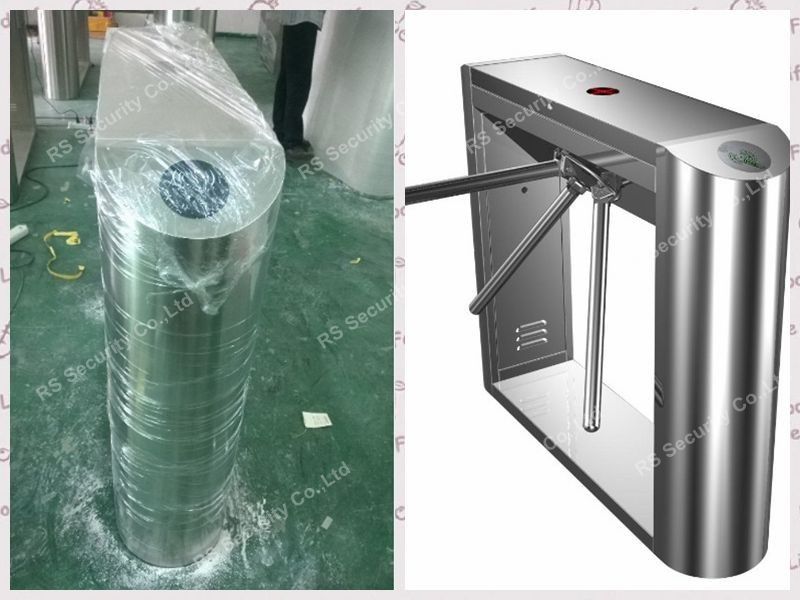

Security Automatic Tripod Waist Height Turnstiles Bi-direction Pass

Product Details:

Place of Origin:	China(mainland)
Brand Name:	RS Security
Certification:	ISO,FCC,SGS,RoHS,CE
Model Number:	RS 218

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	1200USD
Packaging Details:	wooden box
Delivery Time:	3-8workdays
Payment Terms:	TT
Supply Ability:	3000pcs/month

Contact Now

Detailed Product Description

Series:	Tripod Turnstile	Product Name:	Arc Bevel Tripod Turnstile
Material:	304 Or 316 Stainless Steel	Chassis Thickness:	1.5-2.0mm
Certificate:	CE FCC RoHS SGS	Size:	1200280980mm
High Light:	automatic systems turnstiles , turnstile gate systems

Access Control Waist Height Turnstiles Automatic Turnstiles Systems

Specifications

Product Name: Waist Height Turnstile/Tripod Turnstile

Model: RS 618
1.Of high speed barrier
2.Of heavy duty

access control ,barrier gate,tripod turnstile,waist height turnstile,parkign system

feature:

Full Automatic Type
1. Compatibility: Being compatible with several control devices IC . ID. magcard. barcode, fingerprint etc.
2. Auto-drop-arm function :the middle arm will drop automatically(default) or free passing(optional) when power is off.
3. Auto-lift-arm function: the middle arm can also lift automatically with alert when the power is on.
4. Automatic-rotation function: when an open signal is given, the arms will rotate automatically.
5. Anti-reverse-rotation function reverse rotation will be forbidden once the arms have moved to pre-set degree from home.
6. Emergency-escape function the middle arm will automatically drop by pressing the emergency button which can be remote controlled whether the power is on or not.
Semi Automatic Type
1 Being compatible with several control devices IC . ID. magcard. barcode, fingerprint etc.
2. Automatically reset function: It will automatically lock if the pedestrian hasn't pass through
the channel in the pre-set tune after the opening The passing tune is adjustable.
3 Auto-drop-arm function the middle arm will drop automatically(default) or free passing(optional) when power is off.
4 Emergency-escape function the middle arm will automatically drop by pressing the emergency button which can be remote controlled whether the power is on or not
5.Several working modes are optional, namely two-direction card reading for limiting flow capacities, or. one passage works while another is set to forbid passing. or. one passage normally operates while another is free to pass
Manual Type
1 .The arms can only rotate by single direction, but the direction can be changed easily inside.
2. The structure has no electric devices.
3. No maintenance. suitable for single-direction crowd control.

Parameters:

Model:RS 618 tripod

Dimension:1200*280*980mm

Material: stainless steel

Passing width: ≤ 600mm

Drive motor:DC24v

passing speed:45person/min

control method:half-auto/full-auto

passing direction :single way /bi-direction

scanning types:ICcard/ID card/magnetic card/bar code card

Housing Material	304 stainless steel
Product process	Brush suface(standard)/polishing surface
Thickness	1.5mm
Arm length	510mm out of housing
The biggest force the pole can hold	80KG
The direction of rotation	single direction or bi-direction
Transmission of the pole	digital transmission
Light indicator	direction indicating
It chooses optical hole principle, there is no delay requirement for input signal
Working evironment	indoor,outdoor with a tent over
Working temperature	-10C~50C
Relative humidity	<=90%
Opening/closing time	0.2s
Transit speed	30person/min
Communication interface	RS485 or TCP/IP
Input interface	Dry contact signal or 12V level signal or DC12V pulse signal
Driving current	>=10mA
