automatic systems turnstiles

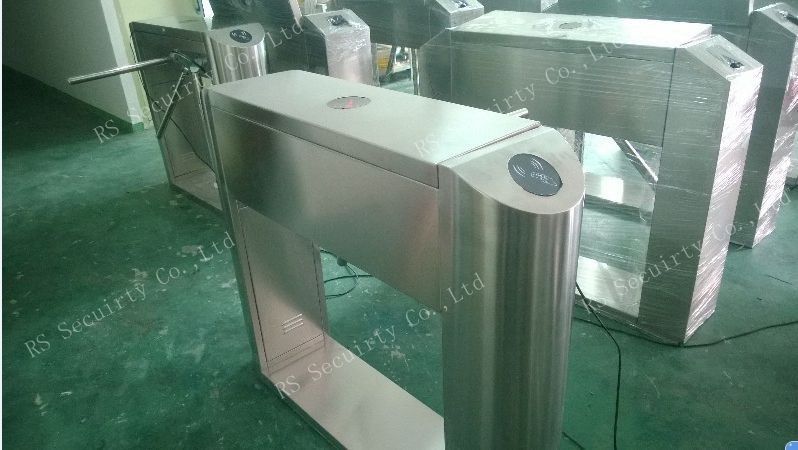

Hotel Barrier Tripod Turnstile Gate Access Control Systems RFID Turnstiles



Specifications



Model ;RS 918



Product Name: Waist Height Turnstile

Heavy duty

Easy use

Bi-direction



Trademark:RS Security

Packing:Plywood Crate, Paper Carton, Pearl Cotton

Standard:CE, SGS, ISO9001

Origin:Shenzhen China

HS Code:85308000

Production Capacity:500 Units / Month





Features and functions:



1. Rainproof housing, #304 stainless steel.



2. CNC stamping and laser drilling, presenting a novel and elegant appearance.



3. Innovative and unique mounting surface ensures simple and convenient installation for



system integrators.



4. Direction can be set as single-direction or bi-direction.



5. Direction indicator.



6.Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc.



(Access controller needed)



7. Automatic reset function. Should the user fail to pass within the prescribed time (default time is



5 seconds), the system will cancel the authority of the current user automatically



8. Arms auto drop when power off, complying with fire safety requirements.



9. The mechanism is equipped with an automatic regulated hydraulic buffer device. There is no



noise and impact when running.



10. Dual-bearing device, keeping the gate in balance when there is external force.





Basic Function:

Automatic reset function: The arms will return to the hindered zero position automatically when



the passing is finished, stable and no shaking.

Automatic reset function: The arms will return to the hindered zero position automatically when



the passing is finished,stable and no shaking.

Self-recovery function: The arms do not return to the hindered zero position because of



something abnormal. And the arms will automatically recover to the hindered zero position when it



is over the set time.

Self-check function when power on: The system will self-check routinely when the power is on,



and intelligently detect the key hardware and function.


Find the hidden danger within the shortest time!

Automatic-rotation function: Once an open signal is given, the arms will rotate automatically to a



degree to indicate the pedestrian to pass. The arms will rotate automatically with the pedestrian after



pushing forward the arms.

Auto-drop-arm function: The arm will drop automatically when power off (default), and free pass



mode without dropping arm is optional.

Auto-lift-arm function: After the arm dropping down automatically when the power is off, the



middle arm can also lift automatically with alert when the power is on again.





Parameter





Model	RS 618
Manual, Semi or Full-automatic	Semi-automatic
Material of Housing	304 Stainless Steel
Thickness of Housing	1.2mm
Dimension of Housing (L×W×H mm)	1200×280×980
Length of Arm	510mm
Diameter of Arm	40mm
Net Weight	90kg
Rotating Direction	Double Direction
Power Supply	220V±10%, 110V±10%
Frequency	50/60HZ
Working Voltage of Motor	DC24V
Rated Power	40W
Interface	Internal Circuit Control Interface Board (Level Signal or DC12V Input)
Transit Speed	20~35 persons/min
Working Temperature	20°C~60°C
Working Environment	Indoor / Outdoor (Shelter)
Relative Humidity	≤95%, no condensation
