Place of Origin: | China |
Brand Name: | Granding |
Certification: | CE/FCC |
Model Number: | TS-300 |
Minimum Order Quantity: | 5pcs |
---|---|
Packaging Details: | Packed in carton ( wooden can be available if in special amount and requirement) |
Delivery Time: | 2 working days after received your payment |
Payment Terms: | T/T in advance |
Supply Ability: | 5,000pcs per week |
Product Name: | Tripod Turnstile | IP Grade: | IP54 |
---|---|---|---|
Material: | SUS304 Stainless Steel Material | Direction: | Both Direction |
Verification Mode: | Control Panel And Fingerprint+RFID Reader | Power Supply: | 110-220V |
Highlight: | stainless steel turnstile |

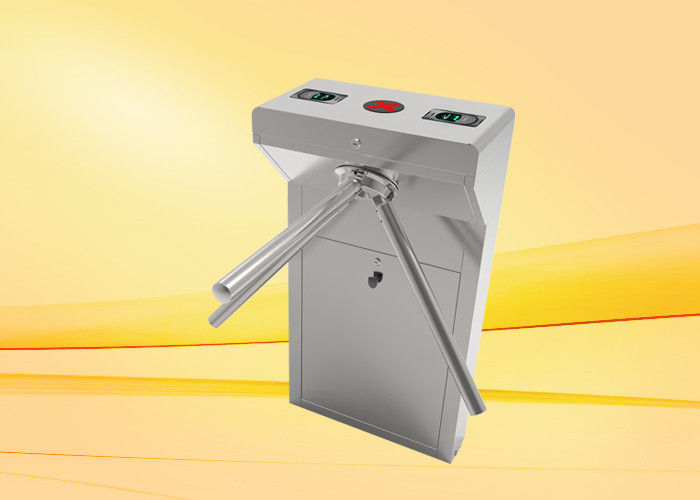

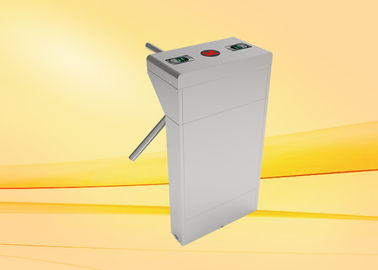

Waterproof Automatic Access Control Tripod Turnstile With RFID Reader
Features:
1. Fingerprint and RFID Semi automatic bi-direction vertical tripod turnstile.
2. The housing of our tripod turnstile adopts SUS304 stainless steel materials; it is robust and durable design.
3. The standard electrical interfaces are flexible for integration with external systems; they could be integrated 4. with multiple devices like card and fingerprint readers. Meanwhile, they are equipped with specialized interface for firefighting linkage.
5. Our tripod turnstiles can be used for access control, time attendance management applications and suitable for stations, wharfs, tourist attractions, exhibition and convention centers or special channel control for communities, factories, enterprises and public institutions etc.
6. Unified quality standards are implemented to ensure overall reliability, stability and fluency.
Specifications
Reader type: |
Operating Temperature: |
TS100: contain Driver control board, power supply |
-28°C-60°C |
TS200: with controller and RFID reader |
Operating Humidity: |
TS300: with controller and Fingerprint & RFID reader |
5%-85% |
Power Supply |
Working Environment: |
AC 220V/110V, 50/60Hz |
Indoor/Outdoor (shelter) |
Rated Power |
Flow Rate |
60W |
25-48 passage/minute |
Ingress Protection |
Pictogram Indication |
IP54 |
Yes |
Casework Material |
Control system |
SUS304 |
Input controlled by dry contact |
Emergency Button Input |
Dimension |
Yes |
52*98*28(CM)+arm length 50CM |
Package Dimension |
Net weight |
60*108*38(CM) |
34KG |
Gross Weight with Package |
Optional Function |
40KG |
Alternative Material or shape, third-party access control integration, ticket system integration, passage counter. |
Introduction:
Tripod turnstiles are compact and cost-effective, low power consumption, high operating reliability. Default mode is to lock the mechanism. On receiving authorization signal, it allows one passage at a time. Passage in both directions is electronically controlled. You can set one side free by adjusting the mechanism. In case of emergency, the horizontal arm will drop to allow free passage
