Shenzhen Turnstile Technology Co., Ltd.
High quality, Best service,Reasonable price.
 |
| Place of Origin: | China |
| Brand Name: | Centuryfair |
| Certification: | CE |
| Model Number: | SJSDZG-8 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export standard carton |
| Delivery Time: | 10-15 days after payment confirmed |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 300 pcs per month |
| Communication Interface: | RS485 | Opening Time: | 0.2 Second |
|---|---|---|---|
| Speed: | 20--30 Persons/min | Housing Dimension: | 1200*280*980mm |
| Arm Length: | 510mm | Weight: | 70 Kgs |
| High Light: | access control gate,automatic barrier gates |
||

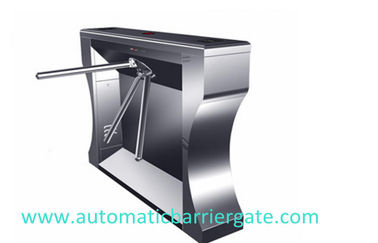

0.2s RS485 Versatile Digital Stainless Barrier Gate System Tripod Turnstile for Subway
Description:
SJSDZG-8 is widely used in airport, musem, bus station, supermarket, park., etc. It is able to integrate with barcode, magnetic card, IC, ID card to excute access control, time attendance, tolling, etc. The machine is rustproof, durable and can resist external destroy. Also it is able to work with parking management to meet different actual requirement.
Applications:
Bus Station
Exhibition
Airport
Subway
Government
Supermarket
Apartment
Park and so on
Specifications:
|
Framework |
304# Stainless Steel |
|
Dimension |
1200*280*980mm |
|
Weight |
70 kgs |
|
Arm length |
510mm |
|
Max Arm load |
80 kgs |
|
Arm working force |
3 kgs |
|
Arm driving way |
Digital |
|
Open time |
0.2 second |
|
Transit speed |
20——30 persons per minute |
|
Temperature |
-10℃—— 50℃ |
|
Relative humility |
≤90%, no-condensation |
|
Communication interface |
RS485, distance ≤1200M |
|
Input interface |
dry contact signal or 12V level signal, or 12V pulse signal with whose pulse width >100ms, driven electricity >10mA |
Competitive Advantages:
1. Single direction or double direction for option
2. A valid lock action can allow one passage at one time
3. NO mode---the machine will unlock when a valid signal is received
4. The gate will lock automatically if passagers do not pass it within giving time. The passing time is adjustable for
different requirement.
5. The arm falls down automatically in case of power off
6. Count and LED digital function (optional)
7. Traffic light guides traffic direction
8. Easy to beintegrated with magnetic card, barcode card, ID card, IC card, etc
9. Memory function
10. standard input/output port to integrate with other systems
