Magnetic Security Tripod Turnstile Gate Ticketing System High Speed

Product Details:

Place of Origin:	china
Brand Name:	TDZ
Certification:	CE
Model Number:	TDZ - S311

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	USD 500 - 900 / Piece
Packaging Details:	paper carton/wooden case
Delivery Time:	5-7 working days after ordered
Payment Terms:	T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability:	2000 pieces / month

Contact Now

Detailed Product Description

Material:	304stainless Steel	Size:	420330900mm
Passing Speed:	< 40 Person/min	Rod Length:	510mm
Rod Length:	510mm	Power Supply Voltage:	AC220 ± 10%V, 50HZ
Communication Interface:	RS485 Electrical Standard Or TCP/IP
High Light:	Half Height Turnstile , Turnstile Security Products

Magnetic Security Tripod Turnstile Gate Ticketing System High Speed

Introduction
Appearance GB(304) stainless steel plate stamping molding,nice shape,rust-proof and durable.Besides foreign standard electrical interface,bar code,ID card,IC card reader can be integrated in the equipment. They are used most commonly in train stations, airports, theme parks, museums and office lobbies.

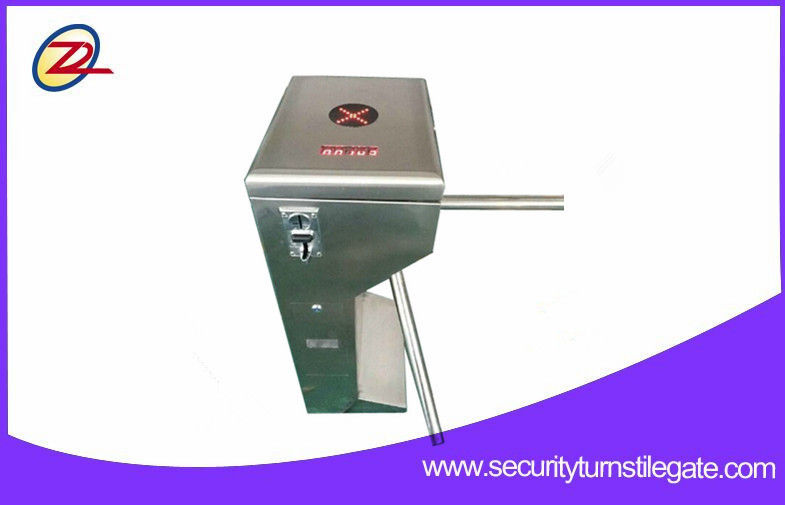

Picture of turnstile gate

Technical Parameters
Framework	304(standard)/316 grade stainless steel
Dimensions	Vertical turnstile:1203301000mm
	Bridge turnstile:12003001000mm
Channel Width	600mm
Weight	70kg.
Operating Mode	one-way or two way control
Power supply voltage	AC220 ± 10%V, 50HZ
Interface	standard RS485/distance≤1200m or TCP/IP.
Gate opening time	0.2 second
Transit speed	30-40 persons per minute
Working environment	indoor or outdoor
Temperature	-10 Celsius to 50 Celsius
Relative humidity	:≤90% no condensation
Main Features&Function
1. Available in single walkway or bi-directional passage.Both directions can be set as controlled mode or free mode.
2. Self-recovery function:the machine will recovery automatically with invalid counting if passage is not completed within pre-set time(5 seconds default,adjustable by software).
3. Multi-alarm function:When arms are pushed by force illegally,alarm will be triggered automatically and the center rotor will be set locked(the duration of the alarm and lock is adjustable by software).
4. Automatic-rotation function:once an open signal is given,the center rotor will rotate automatically.
5. Anti-reverse-rotation function:reverse rotation will be forbidden once the arms have moved to pre-set degree from home(adjustable by software).
6. Emergency escape function:the obstacles will open automatically by pressing the emergency button which can be remote-controlled whether the power is on or not.
7. Smart card reader compatible with a variety of card such as IC and ID card.
8. Can be expanded to automatic identification system,realizing function to access control, pedestrian flow control,attendance check or fare collection.
9. Equipped with international standard electrical interface,can be easily integrated with other R/W device,also can be controlled and management through remote supervision computer.
10. Control panel with count and LED digital function.
11. Optional traffic-light: A Red Cross symbol will illuminate to indicate unit is not available for pass, and a green arrow indicate the direction of allowable pass.

Others
Special Design	OEM is welcome,to meet your needs as best as we can
Warranty	12 months after shipped,the destruction of the non-human factos will be covered.
Technical Service	Product related issues,we will provide comprehensive after-sales guidance and help. Supported by professional engineers.
Package	Paper Carton and Wooden Box
Minimum order quantity	1 piece
Payment terms	T/T,west union,paypal,L/C,D/A,D/P
Leading time	3-4 working days for sample

Customer service:
1. Custom design shape and logo, for large amount, custom logo available for free.
2. Special discount of our distributors or agents in their area.
3. CE available.
