Turnstile Security Products

Stainless steel access two - dimensional code tripod turnstile gate with ticketing system


Quick Details

• ​Bridge type:1400*280*1000mm
• Rod length:510 - 600mm
• Fully automatic / semi automatic / manual type are optional
• Control panel with counting function,LED display function (optional).
• Can use with RFID,Mifare,fingerprint,bar code,facial scanner,etc access control products

Product Descriptions:

According to different control modules, this series can be divided into Fully-Automatic Type, Semi-Automatic Type, and Manual Type.Standard tripod turnstile often use semi-automatic mechansim,if you need fully automtic or manual type,it absolutely no problem

Semi-Automatic Type:

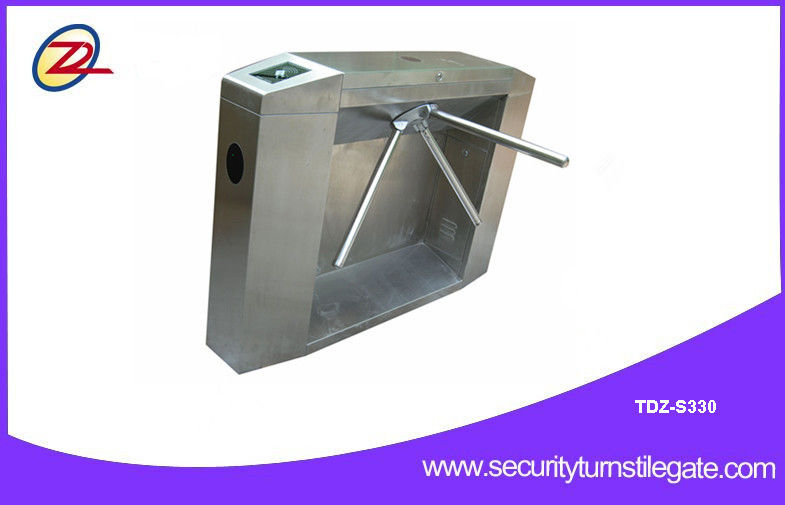

1. Model: TDZ-S330
2. Auto-drop-arm function: the middle arm can drop down automatically (default) (or free passing) when the power is off.
3. Emergency-escape function: the middle arm will drop down automatically by pressing the emergency button which can be remote-controlled whether the power is on or not.
4. The structure has no motor.
5.  Both directions can be set as controlled mode or free mode.
6. NO mode & NC mode can be switched over by users easily & freely.
7. With interface of relay switch (the dry contact signal or +12V electrical level signal or DC12V pulse signal of pulse width ≥ 100ms, driving current ≥ 10mA), compatible with all kinds of access controllers.


Customized Features:


1. Alternative Materials, Finishes and Custom Design
2. Access Control System Integration
3. Ticket System Integration
4. Camera System Integration
5. Thermostat System Integration
6. Remote-Controlled Button
7. Usage Counters
8. Waterproof and Dustproof Design: IP53 for mechanical module, IP65 for electric module
9. SDK and technical support will be provided for Secondary development of software
