Place of Origin: | China |
Brand Name: | WEJOIN |
Certification: | CE, ISO, |
Model Number: | WJTB103 |
Minimum Order Quantity: | 1PC |
---|---|
Price: | negotiation |
Packaging Details: | wooden box |
Delivery Time: | 5-10 days |
Payment Terms: | Telex Release |
Supply Ability: | 50PCS/week |
Highlight: | electronic turnstiles |
---|

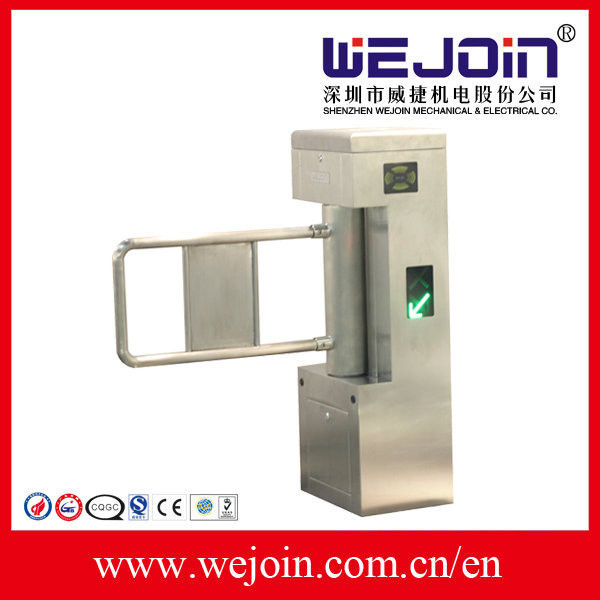

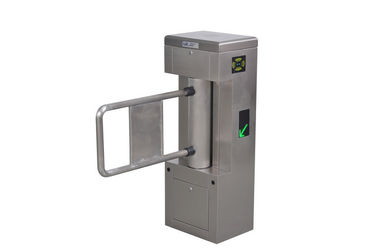

Passage Controlled Access Turnstiles Swing Barrier Gate in Stainless steel
Quick Detail:
Description:
1. WEJOIN swing barriers have a compact electro-mechanical design with unique drive which ensure product durability and silent operation, and its self-lock mechanism can also well protect the access control security.
2. Secondly, WEJOIN swing barriers have automatic detection for malfunctions, which will be convenient for customer to maintain and operate.
3. Thirdly, WEJOIN swing barriers have input interface that are available for dry contact and switch signal connections. So that customers can integrate the swing barrier with different system, like card reader, ticket system, token system etc.
4. Fourthly, WEJOIN swing barriers have auto delay closing function, after the flaps open if no pedestrian passes in a fixed time, the system will cancel the order and the auto-delay closing time is adjustable.
5. Fifthly, WEJOIN swing barriers have audible and visual alarm in case of unauthorized access, which can strengthen the entrance security.
6. Sixthly, WEJOIN swing barriers can be integrated with fire control device, which allow the release on emergency for security consideration.
Specifications
Model Item |
Swing Barrier Mechanism |
Mechanism Dimension | 108*450mm |
Arm Length(Optional) | 500-900mm |
Motro Material | Steel ans Aluminum Alloy |
Voltage | 220V+-15% or 110V+-15% |
Driving Motor | 24V Brush DC Motor |
Swing Direction | Single or Bidirectional Operation are Available |
Input Interface | Dry Contact and Switch Signal Connection |
Time for Opening or Closing | 1 second |
Starting time after power on | 3 seconds |
Transit Speed | 30~40 persons/min |
Working Environment | Indoor / Outdoor (Shelter) |
Working Temperature | —25°C~50°C |
Relative Humidity | ≤90%, no condensation |
