Interface Security Swing Barrier Gate,/Manual Swing Arm Pedestrian System

Interface Security Swing Barrier Gate,/Manual Swing Arm Pedestrian System

  • Interface Security Swing Barrier Gate,/Manual Swing Arm Pedestrian System
  • Interface Security Swing Barrier Gate,/Manual Swing Arm Pedestrian System
Interface Security Swing Barrier Gate,/Manual Swing Arm Pedestrian System
Product Details:
Place of Origin: China(Mainlan)
Brand Name: RS Security
Certification: ISO,FCC,SGS,RoHS,CE
Model Number: RS 716-1
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: 1200USD
Packaging Details: Wooden Box
Delivery Time: 2-7workdays
Payment Terms: TT,
Supply Ability: 3000pcs/month
Contact Now
Detailed Product Description
Series: Swing Barrier Product Name: Suppermaket Swing Barrier
Model: RS716 Brand: RS Security
Material: 304 Stainless Steel Size: 1600*130*980mm(can Customization)
High Light:

double swing gate

,

electric swing gates

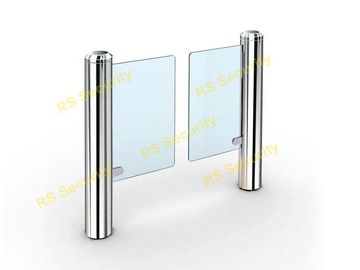

Toughened Glass Automatic Turnstiles Infrared Sensor Pedestrian Slim Fast Gate





Slim Turnstile RS 716-1 series are intelligent passage management equipment researched, developed



and produced by our company. The equipment is integrated with delicate mechanical transmission,



microprocessor control, and various read/write techniques. It can be used for intelligent control and



management of the passage after equipped with different read/write devices.





   Main Technical Specifications
Material SS304,thickness is no less than 1.5mm
Manufacturing Technique CNC laser cutting
Barrier Material Acrylic glass, SS304 and so on
Gate Opening and Closing time ≤ 0.4S
Passing Speed Normally open-50persons/min; Normally closed-50persons/min
Communication Connection RS485 Communication
Power AC220C±10V,50HZ
Motor Servo Motor, 140W/24V
Communication Distance ≤1200M
Input Connection +12V Level Signal or Pulse Wide>100ms DC12V pulse, Current>10Ma
Infrared Sensors 9 or 10 Pairs
Relative Humidity <95%, No Densation
Operating Temperature -15°C-60°C
Working environment indoor and outdoor(added the rainshed)
Colour SSB(US32D)-Stainless Steel Brushed / Powder Coating(Optional), or other Colour you like
Protection Grade IP54
